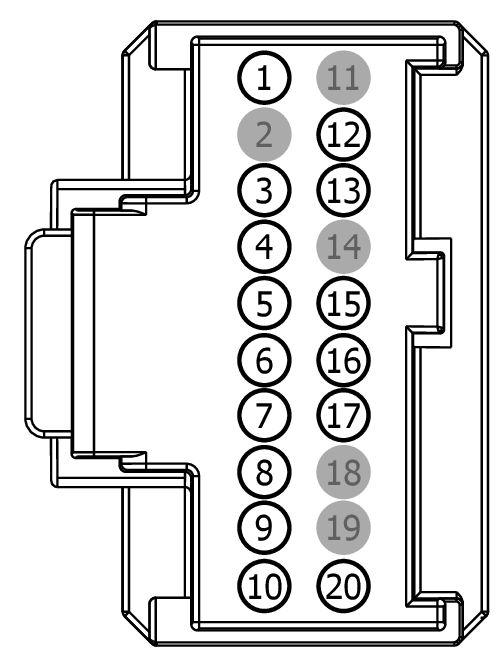

Connector End View (C4014A) - PARKING AID MODULE (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4014A	PARKING AID MODULE (PAM)	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	N/A
4	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS	N/A
5	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
6	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	N/A
7	VMP30 (BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE	N/A
8	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
9	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
10	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	N/A
11	*	*	Not Used	N/A
12	CMP32 (GN)	22	SWITCH - ACTIVE PARK ASSIST (AUTOPARK)	N/A
13	CMP18 (GN-BN)	22	SWITCH - PARKING AID	N/A
14	*	*	Not Used	N/A
15	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	N/A
16	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	N/A
17	VMP29 (GN-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	GD351 (BK-GN)	18	GROUND - PILLAR D RIGHT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:
