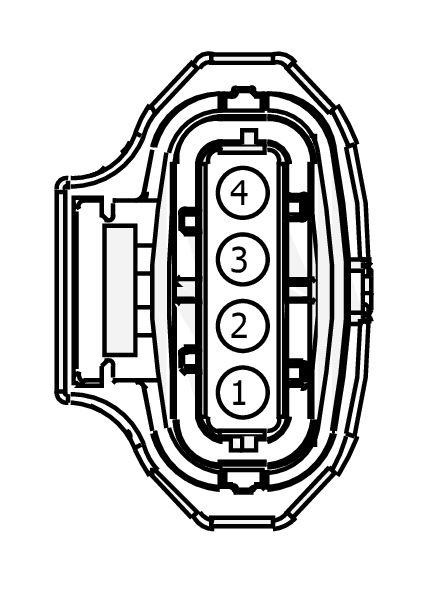

Connector End View (C3613A) - REDUCTANT PUMP ASSEMBLY

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3613A	REDUCTANT PUMP ASSEMBLY	BK	14A411	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE382 (YE)	18	CTRL MOD. - REDUCTANT AGENT PURGING PUMP SOLENOID +	N/A
2	RE382 (GY-VT)	18	CTRL MOD. - REDUCTANT AGENT PURGING PUMP SOLENOID -	N/A
3	RE354 (WH-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) -	N/A
4	VE354 (GN-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) +	N/A
