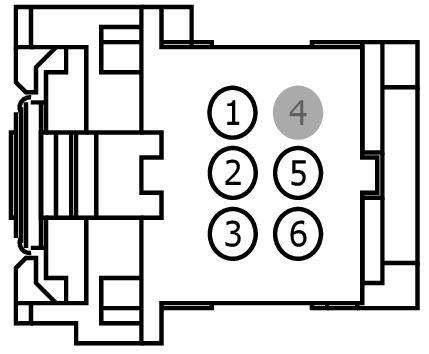

Connector End View (C3462) - A/C CONTROL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3462	A/C CONTROL SWITCH	14B079			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
2	RAX13 (BU-GY)	22	CTRL MOD. - CLIMATE # TAXI REAR CLIMATE HEAD ACTIVATION SWITCH	N/A
3	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
4	*	*	Not Used	N/A
5	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	N/A
6	CAX13 (YE-OG)	22	SWITCH - TAXI REAR CLIMATE HEAD ACTIVATION/DEACTIVATION	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1518

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-NA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Deck Lid / Hatch Release
• Switch - Lift Gate Shutface
• Switch - Power Liftgate
• Switch - Shift By Wire Override
