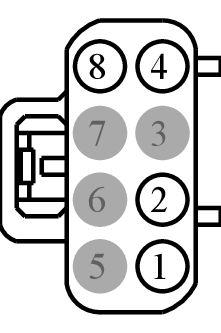

Connector End View (C3461) - TAXI ROOF LAMP SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3461 | TAXI ROOF LAMP SWITCH | BU | 14B079 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAX12 (YE-VT) | 18 | SWITCH - TAXI OCCUPANT STATUS LAMP | N/A | ||||
| 2 | SBB43 (BU-RD) | 18 | FUSE - 43 OR CIRCUIT BREAKER | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | N/A | ||||

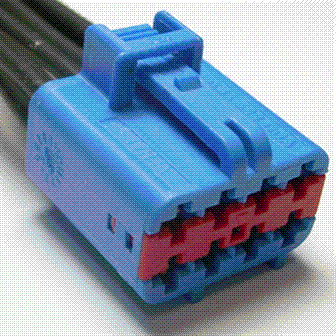

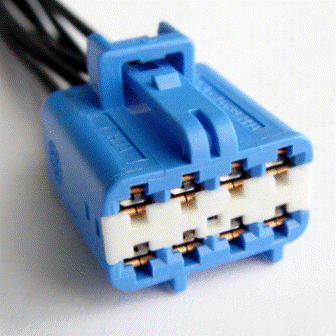

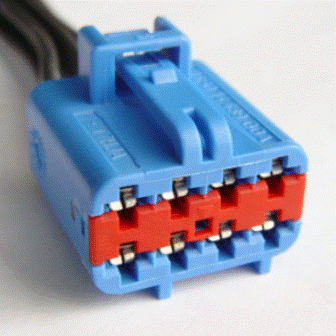

Available Pigtail Kits
Pigtail Kit Part Number WPT-1324
Service Part Number:
3U2Z-14S411-GSB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
8
Vehicle Uses:
- Lamp - Beacon
- Switch - 4x4 Control
- Switch - Heated Seat - RH - Front
- Switch - Reverse Park Aid
Pigtail Kit Part Number WPT-270
Service Part Number:
3U2Z-14S411-GSA
Gauge:
16
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Switch - Heated Seat
- Switch - Reverse Park Aid
Pigtail Kit Part Number WPT-264
Service Part Number:
3U2Z-14S411-FYA
Gauge:
18
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Switch - 4x4 Control
- Switch - Reverse Park Aid
