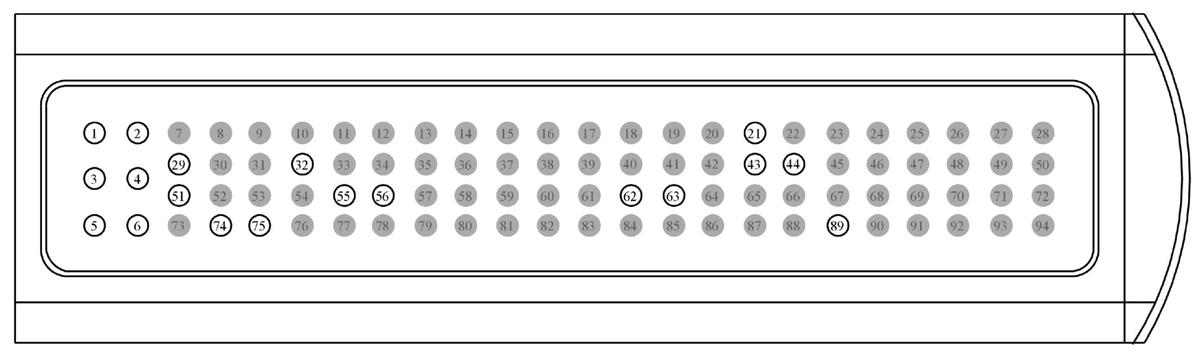

Connector End View (C3450) - REDUCTANT DOSAGE CONTROL (RDC) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3450	REDUCTANT DOSAGE CONTROL (RDC) MODULE	BK	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB25 (WH-OG)	14	FUSE - 25 OR CIRCUIT BREAKER	N/A
2	CE356 (BU-OG)	16	CTRL MOD. - POWERTRAIN # REDUCTANT TANK HEATER (HH1) PWR	N/A
3	CBB27 (GN-BN)	18	FUSE - 27 OR CIRCUIT BREAKER	N/A
4	GD353 (BK-YE)	14	GROUND - ROCKER PANEL FRONT LEFT	LHD	N/A
4	GD356 (BK-YE)	14	GROUND - ROCKER PANEL FRONT RIGHT	RHD	N/A
5	CBB26 (BU-WH)	14	FUSE - 26 OR CIRCUIT BREAKER	N/A
6	CE352 (YE-GY)	16	CTRL MOD. - POWERTRAIN # REDUCTANT PRESSURE LINE HEATER (HH2) PWR	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	VE253 (YE-GY)	22	CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS HIGH	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	RE354 (WH-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) -	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	CE381 (YE-GY)	22	CTRL MOD. - REDUCTANT AGENT ULTRASONIC SENSOR +	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	VE254 (BN-WH)	22	CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS LOW	N/A
44	CBB66 (BU-WH)	18	FUSE - 66 OR CIRCUIT BREAKER	N/A
45	*	*	Not Used	N/A
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	VE354 (GN-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) +	N/A
52	*	*	Not Used	N/A
53	*	*	Not Used	N/A
54	*	*	Not Used	N/A
55	VE382 (YE)	22	CTRL MOD. - REDUCTANT AGENT PURGING PUMP SOLENOID +	N/A
56	RE382 (GY-VT)	22	CTRL MOD. - REDUCTANT AGENT PURGING PUMP SOLENOID -	N/A
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A
59	*	*	Not Used	N/A
60	*	*	Not Used	N/A
61	*	*	Not Used	N/A
62	VE852 (GY-BN)	22	SENSOR - REDUCTANT AGENT ULTRASONIC	N/A
63	RE381 (WH)	22	CTRL MOD. - REDUCTANT AGENT ULTRASONIC SENSOR -	N/A
64	*	*	Not Used	N/A
65	*	*	Not Used	N/A
66	*	*	Not Used	N/A
67	*	*	Not Used	N/A
68	*	*	Not Used	N/A
69	*	*	Not Used	N/A
70	*	*	Not Used	N/A
71	*	*	Not Used	N/A
72	*	*	Not Used	N/A
73	*	*	Not Used	N/A
74	VE351 (VT-OG)	22	CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE PLUS (RDMV+)	N/A
75	VE350 (GY)	22	CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE MINUS (RDMV-)	N/A
76	*	*	Not Used	N/A
77	*	*	Not Used	N/A
78	*	*	Not Used	N/A
79	*	*	Not Used	N/A
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	*	*	Not Used	N/A
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	*	*	Not Used	N/A
89	CE611 (GN-BN)	20	RELAY - INJECTOR PUMP	N/A
