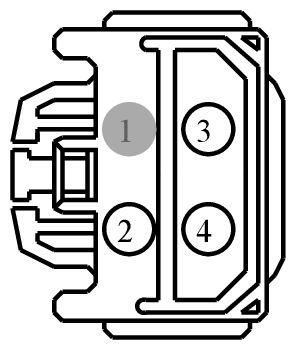

Connector End View (C3448A) - REAR BLOWER MOTOR CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3448A	REAR BLOWER MOTOR CONTROL MODULE	LT GY	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	GD354 (BK-BU)	10	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	N/A
3	VH110 (GN-VT)	20	CTRL MOD. - CLIMATE # BLOWER MOTOR REAR CONTROL	N/A
4	CBP40 (YE-GN)	10	FUSE - 40 OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1177

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BHA

Gauge:

10

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Mating Connector WPT-1408
• Resistor - Blower Motor (Front)
• Switch - Heater / A/C Blower (Front)
