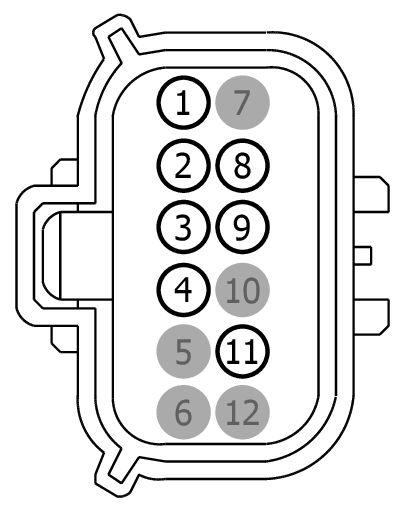

Connector End View (C2518) - BATTERY ENERGY CONTROL MODULE B (BECMB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2518	BATTERY ENERGY CONTROL MODULE B (BECMB)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	N/A
2	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
3	CR194 (VT-WH)	20	CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER	N/A
4	CBP15 (BN-BU)	20	FUSE - 15 OR CIRCUIT BREAKER	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VDB04 (BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
9	CR195 (YE-BU)	20	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	N/A
10	*	*	Not Used	N/A
11	SBP10 (YE-RD)	20	FUSE - 10 OR CIRCUIT BREAKER	N/A
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1544

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMB

Gauge:

16

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Connector - Inline
• Lamp - Front Turn
• Lamp - Headlamp - High/Low Beam
• Mirror - Sideview / Heated
• Module - Battery Energy Control
• Module - Extended Power
• Module - Gear Shift
• Module - Glow Plug
• Module - Transmission Ranger Control
• Trailer Tow - Vehicle Side

Pigtail Kit Part Number WPT-1125

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AMA

Gauge:

16

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Connector - Inline
• Mirror - Sideview
