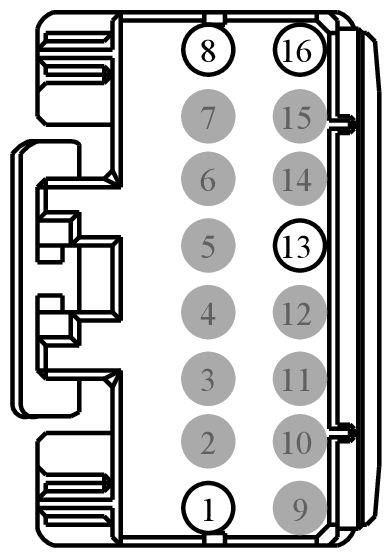

Connector End View (C2494A) - TELEMATICS CONTROL UNIT (TCU) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2494A	TELEMATICS CONTROL UNIT (TCU) MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP11 (BU-RD)	20	FUSE - 11 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VDB31 (BU-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 HIGH	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	RHD	N/A
13	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	LHD	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	VDB32 (VT-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 LOW	N/A

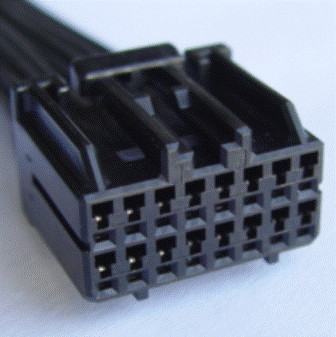

Available Pigtail Kits

Pigtail Kit Part Number WPT-242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EBA

Gauge:

18

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Module - Lighting Control
• Module - Seat Memory
