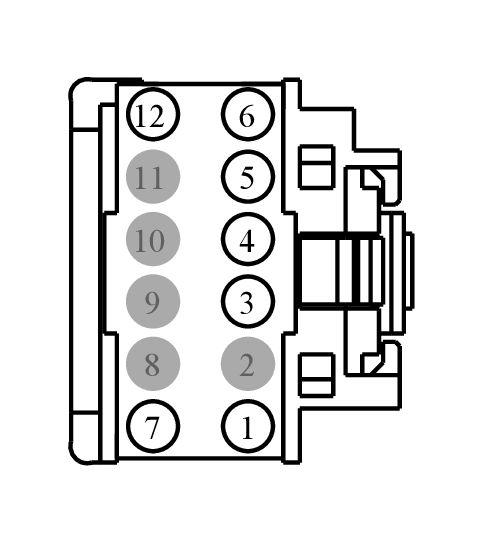

Connector End View (C2480) - INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY 1

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2480	INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY 1	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCA15 (YE-GY)	22	SWITCH - IVD/TCS DISABLE	N/A
2	*	*	Not Used	N/A
3	CE469 (BN)	22	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	N/A
4	CYT30 (GY-VT)	22	SWITCH - ECON CONTROL (ECO) +	N/A
5	CYT30 (GY-VT)	22	SWITCH - ECON CONTROL (ECO) +	N/A
6	VLN04 (VT-WH)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
7	CH253 (WH-BN)	22	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	GD238 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A RIGHT	RHD	N/A
12	GD233 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A LEFT	LHD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1166

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-UA

Gauge:

18

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Clockspring
