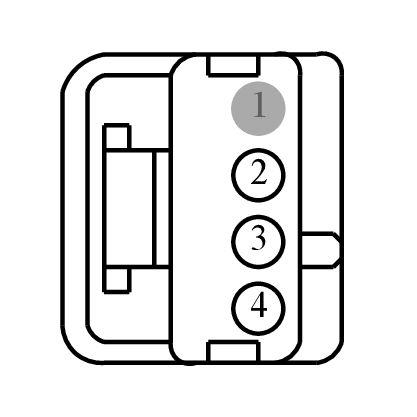

Connector End View (C2434) - STEERING COLUMN LOCK MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2434	STEERING COLUMN LOCK MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CBB17 (BN-GN)	22	FUSE - 17 OR CIRCUIT BREAKER	N/A
3	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
4	VDN20 (BN-GN)	22	CTRL MOD. - LIN BUS # BCM 12	N/A

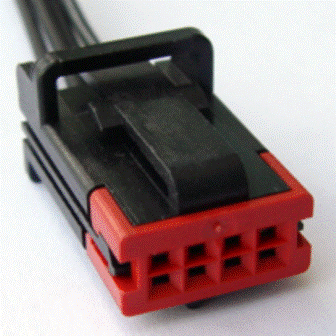

Available Pigtail Kits

Pigtail Kit Part Number WPT-582

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-XHA

Gauge:

20

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Lamp - Dome/Map
• Lamp - Map
• Lamp - Overhead Console
• Module - Warning Chime/ Beltminder
• Monitor - Video/DVD
• Sensor - EATC In Car Temperature
