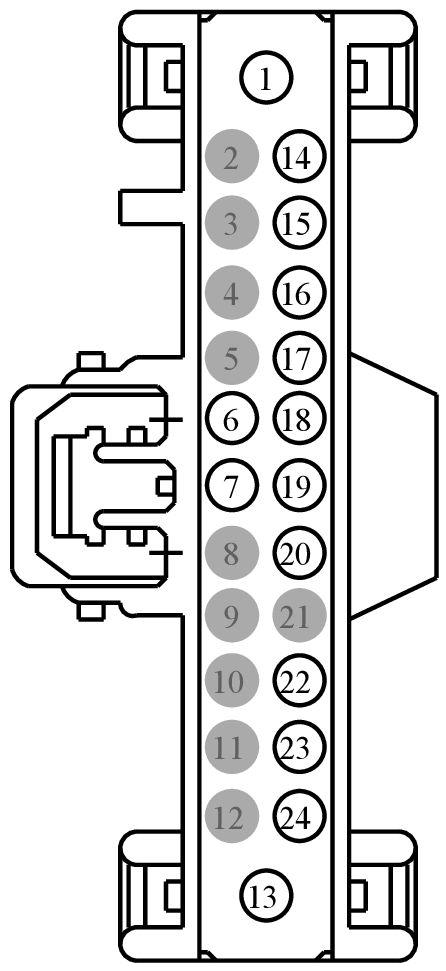

Connector End View (C2431) - GATEWAY MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2431	GATEWAY MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD214 (BK-BU)	18	GROUND - INSTRUMENT PANEL STRUCTURE	LHD	N/A
1	GD215 (BK-GY)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	RHD	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	VDB32 (VT-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 LOW	N/A
7	VDB31 (BU-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 HIGH	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	SBB38 (BN-RD)	20	FUSE - 38 OR CIRCUIT BREAKER	N/A
14	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	LHD	N/A
14	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	RHD	N/A
15	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	N/A
16	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	N/A
17	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
18	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
19	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
20	VDB04 (BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
21	*	*	Not Used	N/A
22	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
23	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
24	SBP22 (BN-RD)	22	FUSE - 22 OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1533

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALB

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• DVD Player
• Module - Audio Control
• Module - Body Control
• Module - Fuel and Damper Control
• Module - Gateway
• Radio
• Test Connector - Diagnostic

Pigtail Kit Part Number WPT-1440

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• DVD Player
• Module - Audio Control
• Module - Body Control
• Module Gateway
• Radio
• Test Connector - Diagnostic
