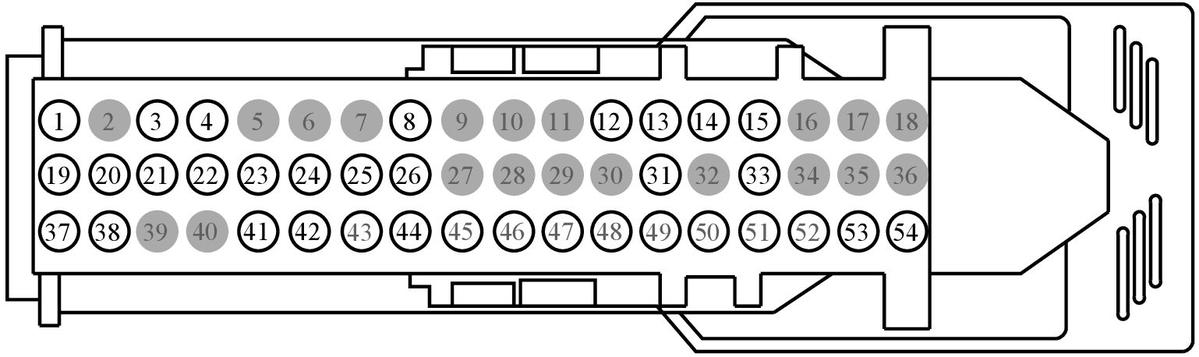

Connector End View (C2383A) - SYNC MODULE [APIM]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2383A	SYNC MODULE [APIM]	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP17 (RD)	20	FUSE - 17 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	VME80 (VT-GN)	22	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+)	N/A
4	RME80 (BU-GY)	22	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-)	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	LME89 (YE-BU)	22	CTRL MOD. - MEDIA CONNECTIVITY POWER	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	VMM13 (YE-GN)	22	MICROPHONE - PHONE/VOICE CONTROL +	N/A
13	RMM13 (BU)	22	MICROPHONE - PHONE/VOICE CONTROL -	N/A
14	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	N/A
15	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	N/A
20	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	N/A
21	DME80 (BARE)	22	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D	N/A
22	DME52 (BARE)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D	N/A
23	VME52 (BU)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT +	N/A
24	RME52 (GY-OG)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT -	N/A
25	VME53 (VT-GN)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT +	N/A
26	RME53 (BN-WH)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT -	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	DMM13 (BARE)	22	MICROPHONE - PHONE/VOICE CONTROL D	N/A
32	*	*	Not Used	N/A
33	DMP19 (BARE)	22	CAMERA - PARKING AID REAR VIDEO D	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	GD215 (BK-GY)	18	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
38	RME89 (WH-BU)	22	CTRL MOD. - MEDIA CONNECTIVITY GROUND	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	VDB31 (BU-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 HIGH	N/A
42	VDB32 (VT-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 LOW	N/A
43	*	*	Not Used	N/A
44	VMC49 (VT-GY)	26	CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS	N/A
45	*	*	Not Used	N/A
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
54	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
