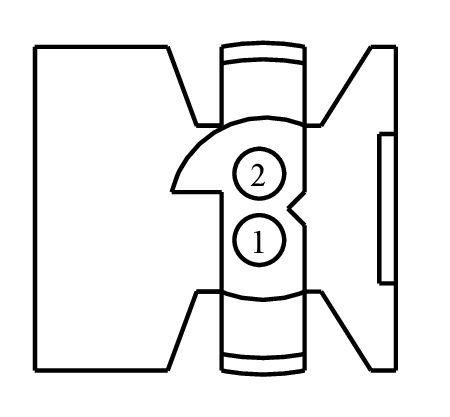

Connector End View (C2351B) - PASSENGER AIRBAG

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2351B	PASSENGER AIRBAG	BN	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +	N/A
2	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -	N/A

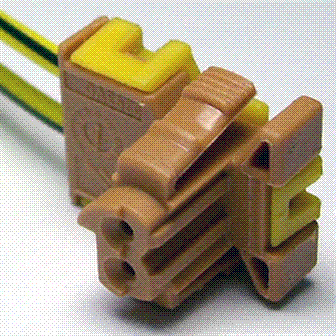

Available Pigtail Kits

Pigtail Kit Part Number WPT-1222

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BEA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Pretensioner - Seat Belt (Driver)
• Squib - Airbag (Passenger)
