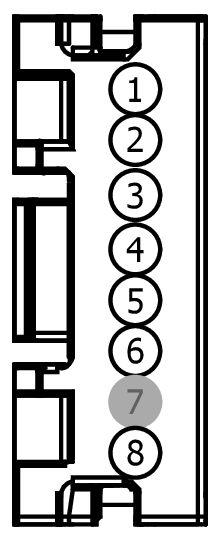

Connector End View (C2286) - PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2286	PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
2	CBP09 (VT-GY)	22	FUSE - 9 OR CIRCUIT BREAKER	N/A
2	CR195 (YE-BU)	22	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	FNA - LHD	N/A
3	CR189 (BU-OG)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	N/A
4	CR190 (GY-BN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF	N/A
5	CBP09 (VT-GY)	22	FUSE - 9 OR CIRCUIT BREAKER	N/A
6	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	LHD	N/A
6	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	RHD	N/A
7	*	*	Not Used	N/A
8	CR189 (BU-OG)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	N/A
