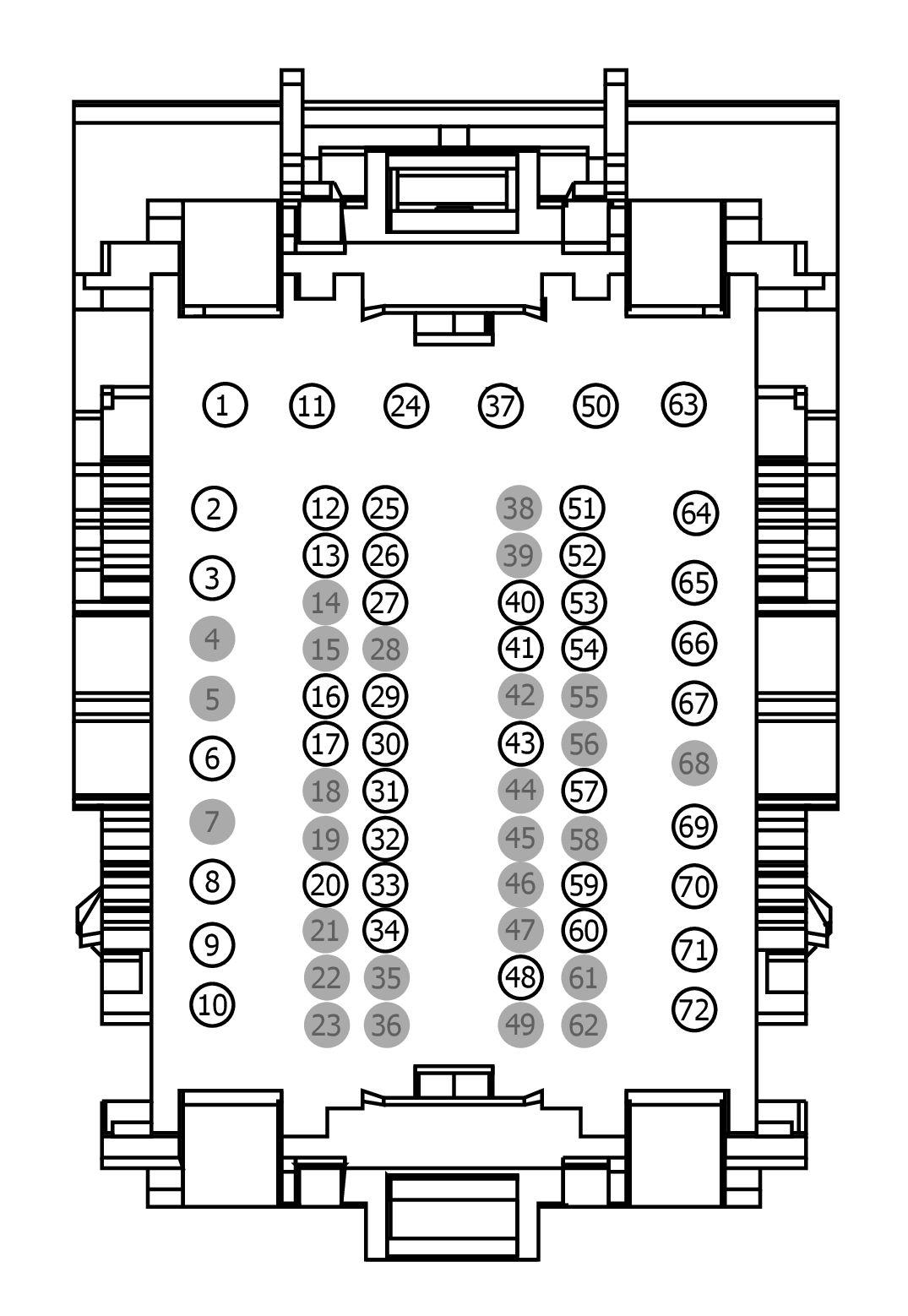

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280F	BODY CONTROL MODULE (BCM)	14A005			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL11 (GY-BN)	17	CTRL MOD. - DOOR LOCK # ALL LOCK	N/A
2	CBP06 (WH-BU)	20	FUSE - 6 OR CIRCUIT BREAKER	N/A
3	CBP03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CLS23 (GY-OG)	20	CTRL MOD. - TURN LAMP LEFT REAR	N/A
7	*	*	Not Used	N/A
8	GD357 (BK)	16	GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT	LHD	N/A
8	GD354 (BK-BU)	16	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	RHD	N/A
9	GD357 (BK)	16	GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT	LHD	N/A
9	GD354 (BK-BU)	16	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	RHD	N/A
10	CPL10 (GN-WH)	20	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE	N/A
11	CPL12 (VT-OG)	17	CTRL MOD. - DOOR LOCK # DOUBLE LOCK ALL LOCK	N/A
12	CLS51 (WH-GN)	20	CTRL MOD. - STOP/TURN LEFT OUTBOARD	N/A
13	CR167 (YE-VT)	22	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	CPL44 (YE-OG)	22	SWITCH - LIFTGATE/DECKLID/CARGO # AJAR	N/A
17	VLN33 (GY-VT)	20	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	CPL43 (VT-GY)	20	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	GD356 (BK-VT)	14	GROUND - ROCKER PANEL FRONT RIGHT	LHD	N/A
24	GD353 (BK-YE)	14	GROUND - ROCKER PANEL FRONT LEFT	RHD	N/A
25	CPL42 (GY-YE)	20	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	N/A
26	CPL29 (YE-GY)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # SET	N/A
27	CPL28 (VT-BN)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # RESET	N/A
28	*	*	Not Used	N/A
29	CPL26 (GN-VT)	20	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	N/A
30	CMC25 (WH-VT)	22	SWITCH - PARKING BRAKE	N/A
31	CPR63 (GY-YE)	22	SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE	N/A
32	CPL31 (WH)	20	SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR	N/A
33	CPL36 (GN)	22	SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR)	N/A
34	CPL39 (YE)	22	SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR)	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	CPL67 (GY-OG)	17	CTRL MOD. - DOOR LOCK # REAR DRIVER SIDE CHILD LOCK	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	CPL23 (GY-BN)	20	SWITCH - LIFTGATE/DECKLID/CARGO # UNLOCK	N/A
41	CPL41 (GN-BU)	20	SWITCH - LATCH REAR PASSENGER SIDE # UNLOCK	N/A
42	*	*	Not Used	N/A
43	CPL35 (BU)	20	SWITCH - LATCH PASSENGER OR RIGHT FRONT # UNLOCK	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	CLS09 (WH-OG)	20	CTRL MOD. - PARK REAR RIGHT	N/A
49	*	*	Not Used	N/A
50	CPL52 (VT-GY)	17	CTRL MOD. - DOOR LOCK # PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER)	N/A
51	CLS53 (GY-VT)	20	CTRL MOD. - STOP/TURN RIGHT OUTBOARD	N/A
52	CLS05 (BU-GY)	20	CTRL MOD. - PARK LAMPS 1	N/A
53	CLS08 (VT-GN)	20	CTRL MOD. - PARK REAR LEFT	N/A
54	VDN02 (GN-OG)	22	CTRL MOD. - LIN BUS # BCM 2	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	CLS17 (YE-GY)	20	CTRL MOD. - STOP HIGH MOUNT	N/A
58	*	*	Not Used	N/A
59	VDN14 (YE-VT)	20	CTRL MOD. - LIN BUS # BCM 6	N/A
60	VMC05 (VT-OG)	20	CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT)	N/A
61	*	*	Not Used	N/A
62	*	*	Not Used	N/A
63	CPL51 (BU-GN)	17	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	N/A
64	CRT34 (VT-OG)	16	RELAY - ANTI-THEFT/SECURITY HORN	N/A
65	CLS27 (GN-OG)	20	CTRL MOD. - TURN LAMP RIGHT REAR	N/A
66	CLS10 (GN-BN)	18	CTRL MOD. - REVERSE LEFT OR COMMON	N/A
67	CLS37 (WH-BU)	18	CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON)	N/A
68	*	*	Not Used	N/A
69	SBP12 (GN-RD)	20	FUSE - 12 OR CIRCUIT BREAKER	N/A
70	SBP19 (BU-RD)	22	FUSE - 19 OR CIRCUIT BREAKER	N/A
71	SBP18 (YE-RD)	18	FUSE - 18 OR CIRCUIT BREAKER	N/A
72	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	N/A
