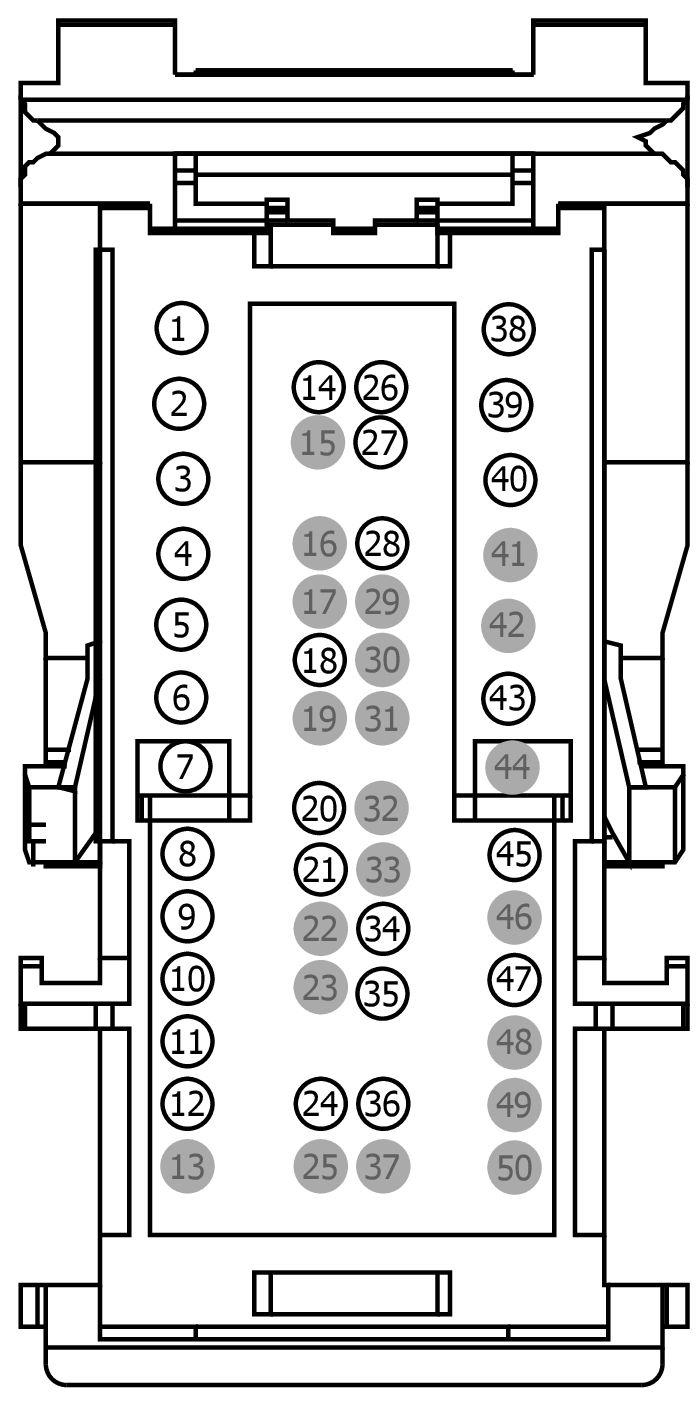

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280E	BODY CONTROL MODULE (BCM)	14290/91A000			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF04 (BN-BU)	18	CTRL MOD. - BEAM LOW LEFT	N/A
2	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	N/A
3	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	N/A
4	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
5	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
6	CLF29 (BN)	18	CTRL MOD. - FOG LAMPS FRONT (LEFT)	N/A
7	CLF34 (YE-OG)	18	CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON	N/A
8	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	N/A
9	CLF62 (VT-WH)	20	CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT	N/A
10	CE436 (VT-OG)	20	CTRL MOD. -WAKE UP PCM	N/A
11	CE261 (GY-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES)	N/A
12	CDC43 (YE-BU)	22	RELAY - ELECTRICAL STEERING COLUMN LOCK	N/A
13	*	*	Not Used	N/A
14	CLS06 (GN-OG)	20	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	CRH04 (VT-GN)	20	CTRL MOD. - RELAY HORN	N/A
19	*	*	Not Used	N/A
20	CDC64 (WH-BU)	20	RELAY - RUN ACCESSORY	N/A
21	CDC71 (YE-GY)	20	CTRL MOD. - POWER OUTLET ENABLE OR SET	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	N/A
25	*	*	Not Used	N/A
26	CPL25 (BU-OG)	20	SWITCH - HOOD # AJAR	N/A
27	CPL30 (BU-BN)	20	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	N/A
28	CLS07 (BN-YE)	20	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID	N/A
35	CPL38 (WH-OG)	20	SWITCH - LATCH REAR DRIVER SIDE # UNLOCK	N/A
36	CDC55 (GY)	20	RELAY - RUN START	N/A
37	*	*	Not Used	N/A
38	CLF03 (VT-OG)	18	CTRL MOD. - BEAM HIGH RIGHT	N/A
39	CLF05 (BU-GN)	18	CTRL MOD. - BEAM LOW RIGHT	N/A
40	CLF02 (GY-BN)	18	CTRL MOD. - BEAM HIGH LEFT	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	N/A
44	*	*	Not Used	N/A
45	VDN04 (VT-WH)	20	CTRL MOD. - LIN BUS # BCM 4	N/A
46	*	*	Not Used	N/A
47	VDN18 (VT-GY)	20	CTRL MOD. - LIN BUS # BCM 10	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
