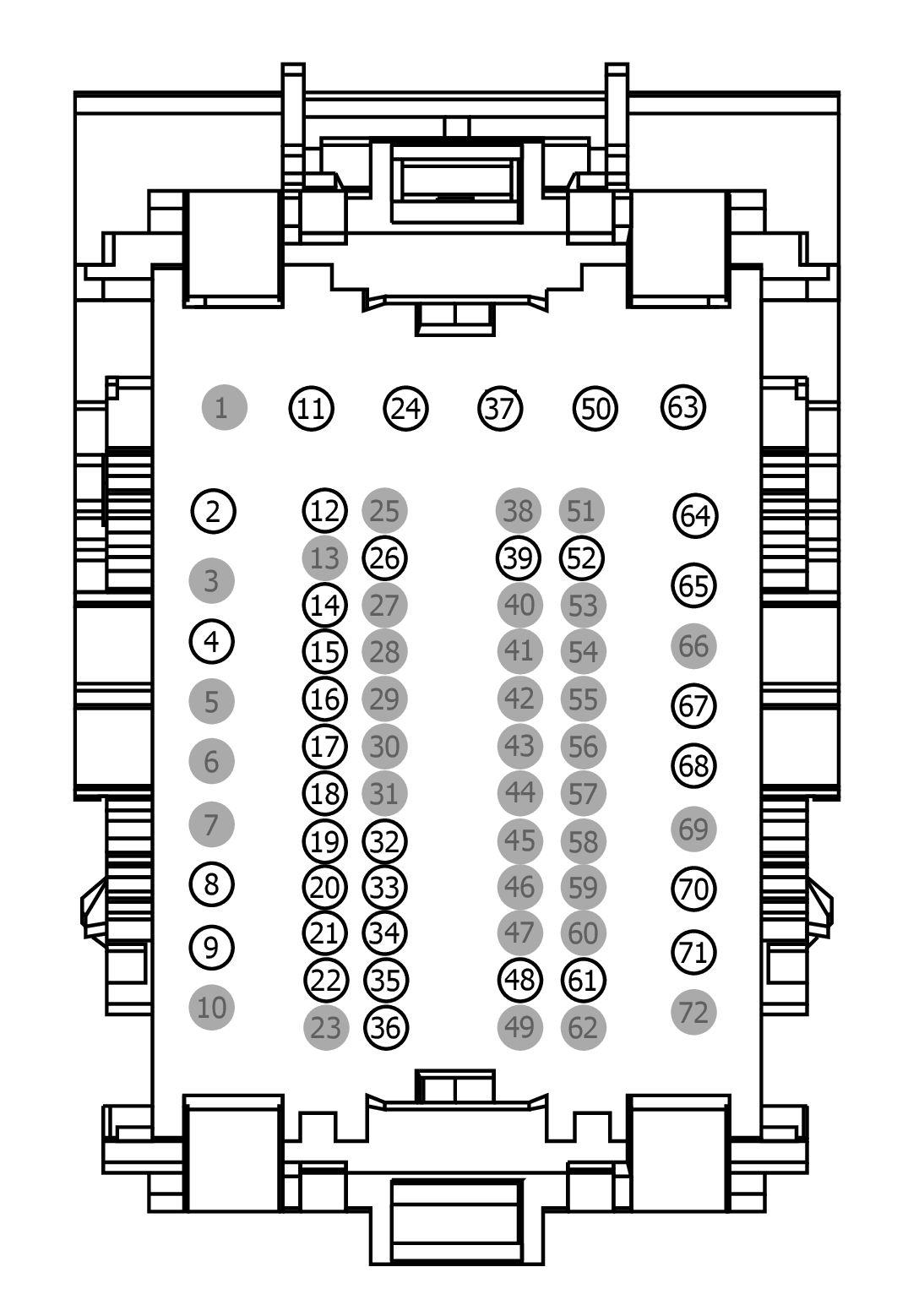

Connector End View (C2280D) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280D	BODY CONTROL MODULE (BCM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	SBP11 (BU-RD)	20	FUSE - 11 OR CIRCUIT BREAKER	N/A
3	*	*	Not Used	N/A
4	CDC35 (BU-WH)	20	SWITCH - IGNITION # START	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CCB08 (VT-WH)	20	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	N/A
9	VDN01 (BU-WH)	22	CTRL MOD. - LIN BUS # BCM 1	N/A
10	*	*	Not Used	N/A
11	SBP24 (VT-RD)	20	FUSE - 24 OR CIRCUIT BREAKER	N/A
12	CLS32 (BN-YE)	26	SWITCH - HAZARD	N/A
13	*	*	Not Used	N/A
14	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
15	CPL87 (BN)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	N/A
16	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	N/A
17	CDC74 (BU-GN)	22	CTRL MOD. - KEY INHIBIT	N/A
18	CET53 (BU-OG)	20	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK	N/A
19	CRT36 (BU-GY)	22	CTRL MOD. - WIRELESS CHARGE ENABLE/DISABLE	N/A
20	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED	N/A
21	CPK34 (GN-WH)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +	N/A
22	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN	N/A
23	*	*	Not Used	N/A
24	SBP04 (GN-RD)	18	FUSE - 4 OR CIRCUIT BREAKER	N/A
25	*	*	Not Used	N/A
26	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	VDN15 (BU-GY)	20	CTRL MOD. - LIN BUS # BCM 7	N/A
33	VPL56 (BU-GY)	22	RECEIVER - REMOTE RF	N/A
34	CDC32 (BN-YE)	18	SWITCH - IGNITION # RUN	N/A
35	CDC33 (VT-GN)	22	SWITCH - IGNITION # RUN ACCESSORY	N/A
36	VDN20 (BN-GN)	22	CTRL MOD. - LIN BUS # BCM 12	N/A
37	SBP23 (WH-RD)	16	FUSE - 23 OR CIRCUIT BREAKER	N/A
38	*	*	Not Used	N/A
39	RLF14 (GY-BN)	20	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	CE903 (BU-OG)	20	SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT)	N/A
49	*	*	Not Used	N/A
50	SBP17 (RD)	18	FUSE - 17 OR CIRCUIT BREAKER	N/A
51	*	*	Not Used	N/A
52	VLF14 (BU-BN)	20	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +	N/A
53	*	*	Not Used	N/A
54	*	*	Not Used	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A
59	*	*	Not Used	N/A
60	*	*	Not Used	N/A
61	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +	N/A
62	*	*	Not Used	N/A
63	SBP10 (YE-RD)	20	FUSE - 10 OR CIRCUIT BREAKER	N/A
64	SBP21 (GY-RD)	20	FUSE - 21 OR CIRCUIT BREAKER	N/A
65	SBP22 (BN-RD)	18	FUSE - 22 OR CIRCUIT BREAKER	N/A
66	*	*	Not Used	N/A
67	CBP15 (BN-BU)	20	FUSE - 15 OR CIRCUIT BREAKER	N/A
68	CBP09 (VT-GY)	22	FUSE - 9 OR CIRCUIT BREAKER	N/A
69	*	*	Not Used	N/A
70	CBP02 (GN)	22	FUSE - 2 OR CIRCUIT BREAKER	N/A
71	CBP01 (BU)	20	FUSE - 1 OR CIRCUIT BREAKER	N/A
72	*	*	Not Used	N/A
