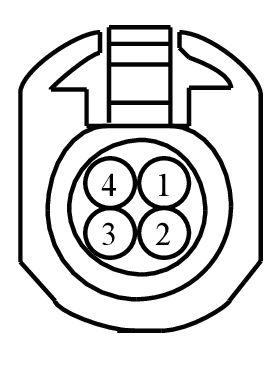

Connector End View (C2123) - FRONT CONTROL/ DISPLAY INTERFACE MODULE (FCDIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2123	FRONT CONTROL/ DISPLAY INTERFACE MODULE (FCDIM)	%23N/A			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	COMMUNICATION +	N/A
2	* (*)	*	POWER	N/A
3	* (*)	*	COMMUNICATION +	N/A
4	* (*)	*	GROUND	N/A
