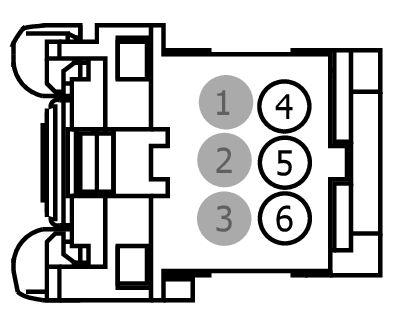

Connector End View (C2099) - PASSENGER AIRBAG DEACTIVATION (PAD) SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2099	PASSENGER AIRBAG DEACTIVATION (PAD) SWITCH	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CR225 (YE)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG OFF (B)	N/A
5	RR224 (GY-BU)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # RETURN	N/A
6	CR224 (GN)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG ON (A)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1663

Courtesy of FORD MOTOR COMPANY

Service Part Number:

MU2Z-14S411-HA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• *Switch - Airbag Deactivation
