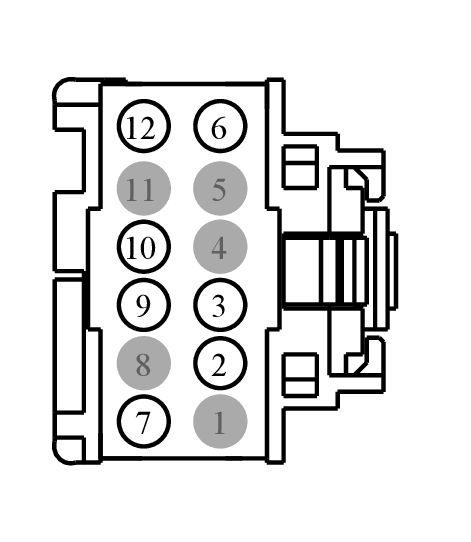

Connector End View (C2035) - INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY 2

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2035	INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY 2	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CMP32 (GN)	22	SWITCH - ACTIVE PARK ASSIST (AUTOPARK)	N/A
3	CMP18 (GN-BN)	22	SWITCH - PARKING AID	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
7	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS	N/A
8	*	*	Not Used	N/A
9	CE469 (BN)	26	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	N/A
10	CH253 (WH-BN)	26	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	N/A
11	*	*	Not Used	N/A
12	GD238 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A RIGHT	RHD	N/A
12	GD233 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A LEFT	LHD	N/A

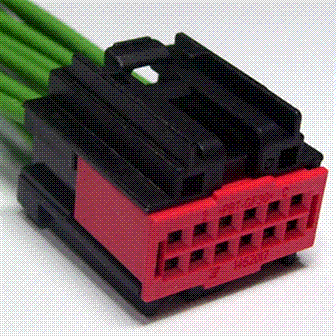

Available Pigtail Kits

Pigtail Kit Part Number WPT-1574

Courtesy of FORD MOTOR COMPANY

Service Part Number:

4U2Z-14S411-MC

Gauge:

20

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Switch - Center Stack (Multipurpose)
• Switch - Multifunction

Pigtail Kit Part Number WPT-1360

Courtesy of FORD MOTOR COMPANY

Service Part Number:

4U2Z-14S411-MB

Gauge:

20

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Switch - Center Stack (Multipurpose)
• Switch - Multifunction
