Connector End View (C1915B) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C1915B POWERTRAIN CONTROL MODULE (PCM) 14290 part# N/A Not Available

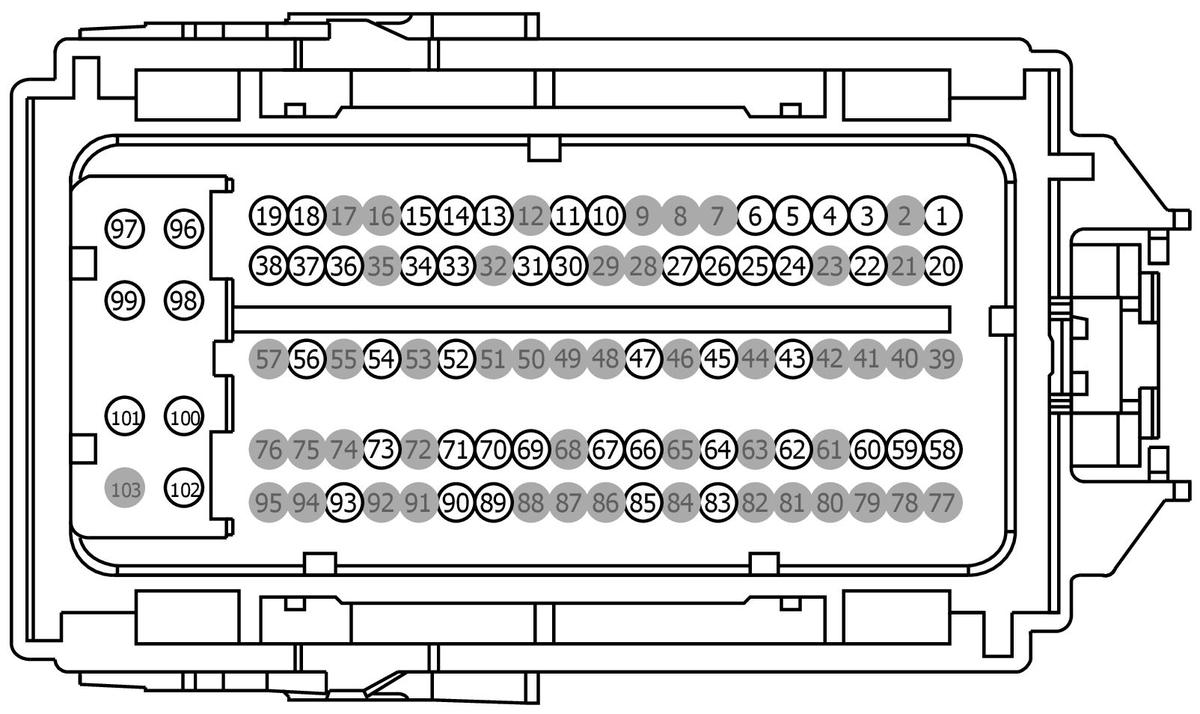

GFDWR129859Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE113 (WH-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) N/A
2 * * Not Used N/A
3 CE420 (GY-VT) 18 CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) N/A
4 RE407 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) N/A
5 CET42 (GN-VT) 20 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) N/A
6 CET43 (GY) 20 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN N/A
11 CES09 (VT-OG) 20 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + N/A
12 * * Not Used N/A
13 VH433 (VT-OG) 20 TRANSDUCER - A/C PRESSURE (ACPT) + N/A
14 LE230 (BN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) N/A
15 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) N/A
16 * * Not Used N/A
17 * * Not Used N/A
18 RE136 (VT-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) N/A
19 RE137 (YE-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) N/A
20 VE530 (GY-BN) 20 CTRL MOD. - AUXILIARY WATER PUMP N/A
21 * * Not Used N/A
22 CE114 (GN-BU) 18 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) N/A
23 * * Not Used N/A
24 VE922 (VT-GN) 20 TRANSDUCER - FUEL TANK PRESSURE (FTPT) N/A
25 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) N/A
26 RE407 (YE-VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) N/A
27 CE261 (GY-OG) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) N/A
31 VE750 (GN-BU) 20 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) N/A
32 * * Not Used N/A
33 VE701 (YE-OG) 20 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) N/A
34 VE702 (BU-WH) 20 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) N/A
35 * * Not Used N/A
36 RE335 (VT-GN) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN AMBIENT TEMP. SENSOR (AAT) N/A
37 LE136 (GN-OG) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) N/A
38 LE137 (BU-GY) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 VE203 (YE-GY) 20 CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) N/A
44 * * Not Used N/A
45 CDC35 (BU-WH) 20 SWITCH - IGNITION # START N/A
46 * * Not Used N/A
47 VE181 (WH-GN) 20 CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 * * Not Used N/A
52 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM N/A
53 * * Not Used N/A
54 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) N/A
55 * * Not Used N/A
56 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT) N/A
57 * * Not Used N/A
58 VE225 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) N/A
59 VE462 (WH-BN) 18 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE N/A
60 CET99 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID TRANSMISSION HYDRAULIC INDICATOR (THASC) N/A
61 * * Not Used N/A
62 CH302 (WH-BN) 20 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) N/A
63 * * Not Used N/A
64 CBB58 (GY-OG) 20 FUSE - 58 OR CIRCUIT BREAKER N/A
65 * * Not Used N/A
66 VDB05 (WH) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW N/A
67 VDB04 (BU) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH N/A
68 * * Not Used N/A
69 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) N/A
70 CE148 (YE-GY) 18 CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE N/A
71 CDC12 (YE) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) N/A
72 * * Not Used N/A
73 VE761 (BN-BU) 20 SENSOR - FUEL LOW PRESSURE (FLPS) N/A
74 * * Not Used N/A
75 * * Not Used N/A
76 * * Not Used N/A
77 * * Not Used N/A
78 * * Not Used N/A
79 * * Not Used N/A
80 * * Not Used N/A
81 * * Not Used N/A
82 * * Not Used N/A
83 VDC61 (VT-GN) 20 SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR N/A
84 * * Not Used N/A
85 CCA72 (WH-VT) 18 CTRL MOD. - VACUUM ON DEMAND AUTOMATED SHUT-OFF VALVE (ASOV) N/A
86 * * Not Used N/A
87 * * Not Used N/A
88 * * Not Used N/A
89 RE320 (BU) 20 CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) N/A
90 VE807 (YE-VT) 18 SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) N/A
91 * * Not Used N/A
92 * * Not Used N/A
93 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) N/A
94 * * Not Used N/A
95 * * Not Used N/A
96 GD121 (BK-YE) 17 GROUND - FENDER FRONT LEFT # 2ND POINT N/A
97 GD121 (BK-YE) 17 GROUND - FENDER FRONT LEFT # 2ND POINT N/A
98 GD121 (BK-YE) 17 GROUND - FENDER FRONT LEFT # 2ND POINT N/A
99 GD121 (BK-YE) 17 GROUND - FENDER FRONT LEFT # 2ND POINT N/A
100 CBB67 (GN-BN) 17 FUSE - 67 OR CIRCUIT BREAKER N/A
101 CBB67 (GN-BN) 17 FUSE - 67 OR CIRCUIT BREAKER N/A
102 CBB67 (GN-BN) 17 FUSE - 67 OR CIRCUIT BREAKER N/A
103 * * Not Used N/A
