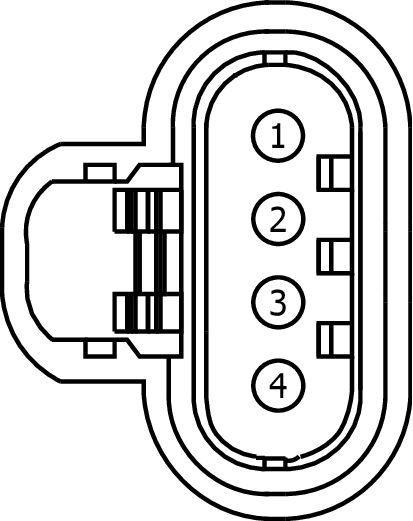

Connector End View (C1823) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1823	MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE804 (GN-BN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	N/A
2	LE329 (BU)	20	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) +	N/A
3	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
4	RE804 (GY-BU)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Differential Oil Temperature
• Module - Particulate Matter Bank Sensor
• Module - Reductant Quality
• Noise Generator
• Sensor - Fuel Rail Pressure and Temperature
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbo Intake Pressure/Temperature
• Valve - Active Exhaust Solenoid
