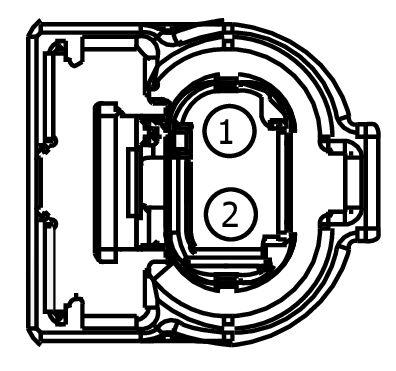

Connector End View (C1752) - FRONT IMPACT SENSOR CENTER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1752	FRONT IMPACT SENSOR CENTER	14290/91A000			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR129 (BN-GN)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST +	91A000	N/A
1	CR173 (WH-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT CENTRAL +	N/A
2	RR173 (GN-BN)	20	CTRL MOD. - SENSOR IMPACT FRONT CENTRAL -	N/A
2	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -	91A000	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Side Impact
• Sensor - Transfer Case Temperature
• Sensor - Transmission Fluid Temperature
• Solenoid - Variable Oil Pump Control
