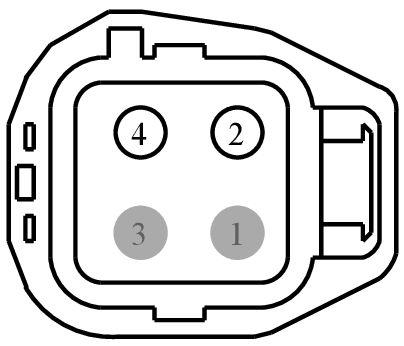

Connector End View (C1749B) - GLOW PLUG MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1749B	GLOW PLUG MODULE	DK GY	14290	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	SBB35 (BU-RD)	12	FUSE - 35 OR CIRCUIT BREAKER	N/A
3	*	*	Not Used	N/A
4	SBB29 (GY-RD)	12	FUSE - 29 OR CIRCUIT BREAKER	N/A

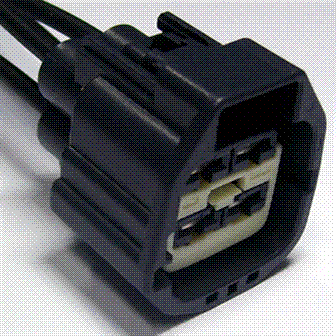

Available Pigtail Kits

Pigtail Kit Part Number WPT-1343

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ABA

Gauge:

12

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Mating Connector WPT-750
• Motor - Engine Cooling Fan
