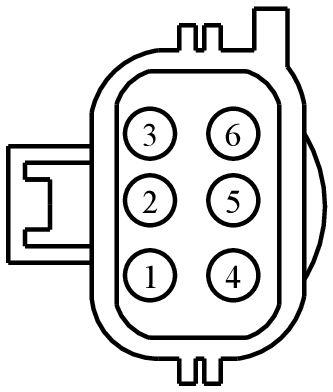

Connector End View (C1729) - FUEL FIRED BOOSTER HEATER MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1729	FUEL FIRED BOOSTER HEATER MODULE	DK GY	14290	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB39 (WH-RD)	14	FUSE - 39 OR CIRCUIT BREAKER	N/A
2	CHF01 (BN-BU)	16	CTRL MOD. - FUEL FIRED HEATER # FFH FUEL PUMP	N/A
3	VHF04 (YE-BU)	20	CTRL MOD. - FUEL FIRED HEATER # W BUS	N/A
4	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
5	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
6	GD124 (BK-VT)	14	GROUND - FENDER FRONT RIGHT # 2ND POINT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-163

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-BUA

Gauge:

14

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Windshield Wiper
