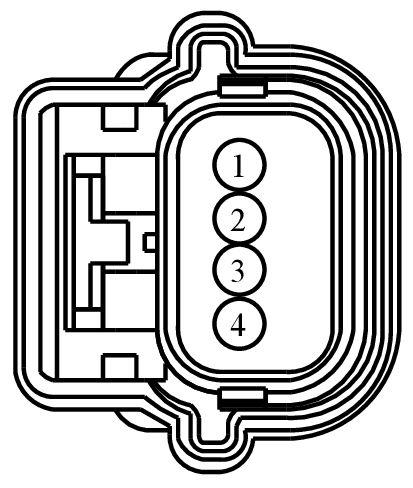

Connector End View (C1726) - CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1726	CLUTCH MASTER CYLINDER PUSH ROD POSITION SENSOR	BK	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE757 (WH)	20	SENSOR - CLUTCH MASTER CYLINDER 2 (CPP2)	Diesel	N/A
2	LE456 (YE-BU)	20	CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER +	N/A
2	LE424 (YE-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)	N/A
3	VE772 (YE-BU)	20	SENSOR - CLUTCH MASTER CYLINDER 1 (CPP1)	N/A
4	RE456 (BU-OG)	20	CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER -	Diesel	N/A
4	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
