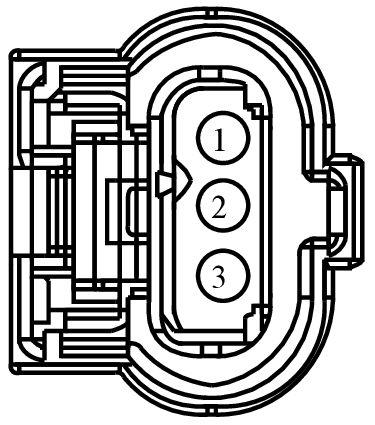

Connector End View (C1698) - CAMSHAFT POSITION 11 (CMP11) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1698	CAMSHAFT POSITION 11 (CMP11) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	N/A
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	N/A
3	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Sensor - Fuel Low Pressure
