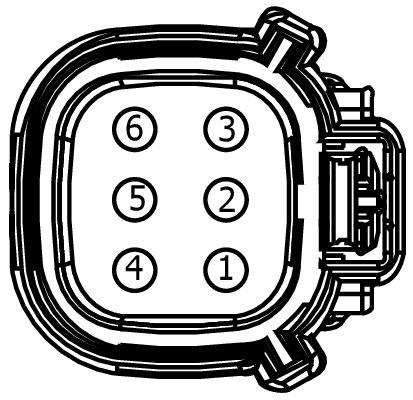

Connector End View (C1682) - EXHAUST GAS RECIRCULATION (EGR) VALVE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1682	EXHAUST GAS RECIRCULATION (EGR) VALVE	12C508			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE101 (WH-VT)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+)	N/A
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	N/A
3	CE102 (YE-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-)	N/A
4	CE104 (GN-YE)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC)	N/A
5	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	N/A
6	CE103 (BU-BN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC)	N/A
