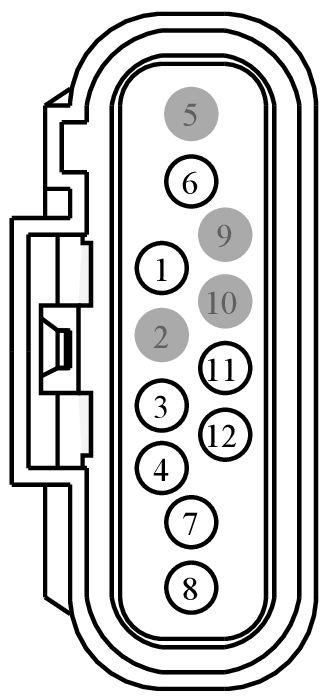

Connector End View (C1655) - WINDSHIELD WIPER MOTOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1655 | WINDSHIELD WIPER MOTOR | BK | 13A840 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CRW15 (BN-WH) | 20 | CTRL MOD. - FRONT WIPER HIGH | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VRW28 (WH-OG) | 20 | MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE | N/A | ||||
| 4 | VX107 (YE-GY) | 20 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | GD120 (BK-GN) | 17 | GROUND - FENDER FRONT LEFT | N/A | ||||
| 7 | CRW14 (BU-WH) | 17 | CTRL MOD. - FRONT WASHER | N/A | ||||
| 8 | CBB06 (WH-BU) | 17 | FUSE - 6 OR CIRCUIT BREAKER | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | CRW02 (GY-BU) | 20 | CTRL MOD. - REAR WIPER | N/A | ||||
| 12 | CRW23 (VT-GN) | 20 | RELAY - REAR WASHER | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1316
Service Part Number:
BU2Z-14S411-AB
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
12
Vehicle Uses:
- Motor - Windshield Wiper
