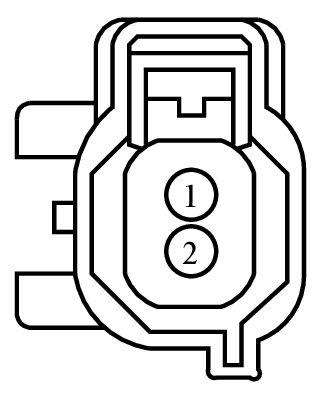

Connector End View (C01712) - EXHAUST GAS TEMPERATURE (EGT) SENSOR 2

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C01712	EXHAUST GAS TEMPERATURE (EGT) SENSOR 2	GY	14305	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE723 (GN-VT)	20	SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) +	N/A
2	RE723 (WH-BU)	20	SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Running Board
• Sensor - Knock
• Sensor - Speed
• Sensor - Water in Fuel
