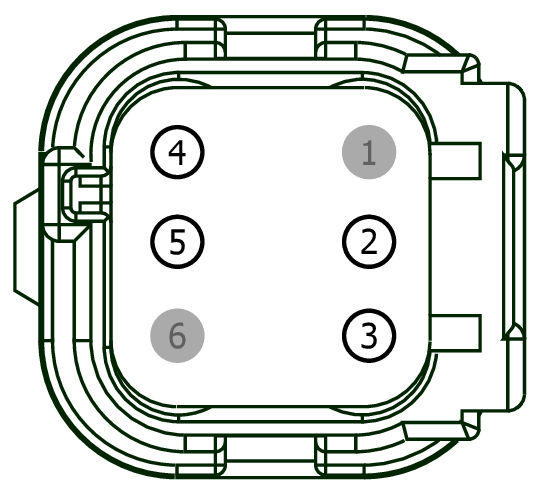

Connector End View (C543) - EXTERIOR FRONT DOOR HANDLE LH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C543 | EXTERIOR FRONT DOOR HANDLE LH | 14D559 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | VPK01 (BN-YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER + | N/A | ||||
| 3 | VPK39 (GN-VT) | 22 | SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA | N/A | ||||
| 4 | RPK39 (VT-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE | N/A | ||||
| 5 | RPK01 (WH-GN) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER - | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
