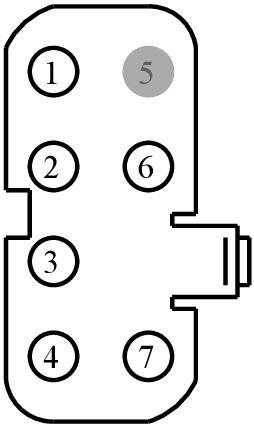

Connector End View (C529) - PASSENGER DOOR WINDOW SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C529 | PASSENGER DOOR WINDOW SWITCH | BK | 14630 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPW20 (BK) | 16 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | N/A | ||||
| 2 | CBP25 (BK) | 14 | FUSE - 25 OR CIRCUIT BREAKER | N/A | ||||
| 3 | CPW13 (BK) | 14 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP | N/A | ||||
| 4 | GD357 (BK) | 20 | GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CPW12 (BK) | 14 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN | N/A | ||||
| 7 | CPW19 (BK) | 16 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1267
Service Part Number:
3U2Z-14S411-PKB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
7
Vehicle Uses:
- Switch - Adjustable Pedal
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Heated Back Light (Rear Defrost)
- Switch - Power Sliding Rear Window
- Switch - Power Window - Driver
- Switch - Power Window - LH - Rear
- Switch - Power Window - Passenger (Front)
- Switch - Power Window - RH - Rear
- Switch - Seat (driver)
- Switch - Traction Control
