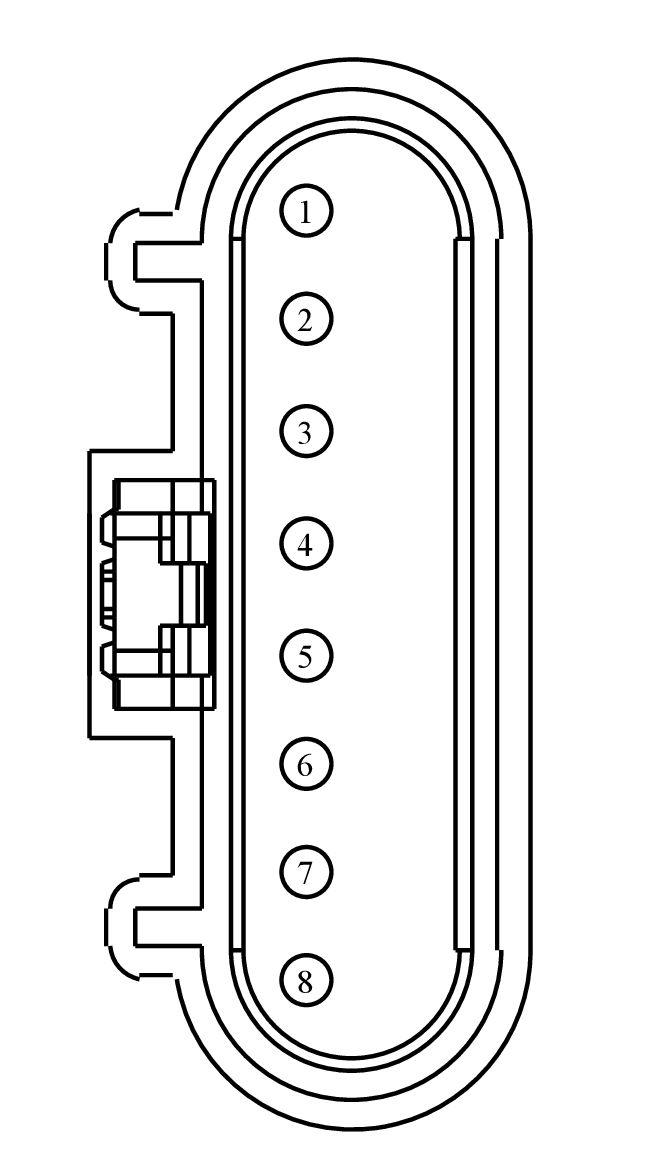

Connector End View (C525) - FRONT DOOR LATCH LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C525	FRONT DOOR LATCH LH	BK	14630/14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL29 (BK)	20	SWITCH - LATCH DRIVER OR LEFT FRONT # SET	N/A
2	CPL28 (BK)	20	SWITCH - LATCH DRIVER OR LEFT FRONT # RESET	N/A
3	CPL26 (BK)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	N/A
4	CPL30 (BK)	20	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	N/A
5	GD357 (BK)	22	GROUND - ROCKER PANEL FRONT RIGHT # 2ND POINT	N/A
5	RPL62 (BK)	20	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER	RHD with door modules	N/A
5	GD354 (BK)	20	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	N/A
5	RPL61 (BK)	20	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER	LHD with door modules	N/A
6	CPL12 (BK)	17	CTRL MOD. - DOOR LOCK # DOUBLE LOCK ALL LOCK	N/A
7	CPL11 (BK)	17	CTRL MOD. - DOOR LOCK # ALL LOCK	N/A
8	CPL52 (BK)	17	CTRL MOD. - DOOR LOCK # PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER)	RHD	N/A
8	CPL51 (BK)	17	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	LHD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1366

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MBB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - LH - Front
• Actuator - Door Lock - LH - Rear
• Actuator - Door Lock - RH - Front
• Actuator - Door Lock - RH - Rear
• Module - Liftgate
• Switch - Door Ajar / Interior Lamp
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
• Switch - Sliding Door Contact
