Connector End View (C510) - INLINE

Inline: Description Color Harness Base Part # Service Pigtail
C510 INLINE DK GY 14630/1463114A005 See Below
Terminal Part Number  Service Part Number  Size

MALE

Harness

14630/14631

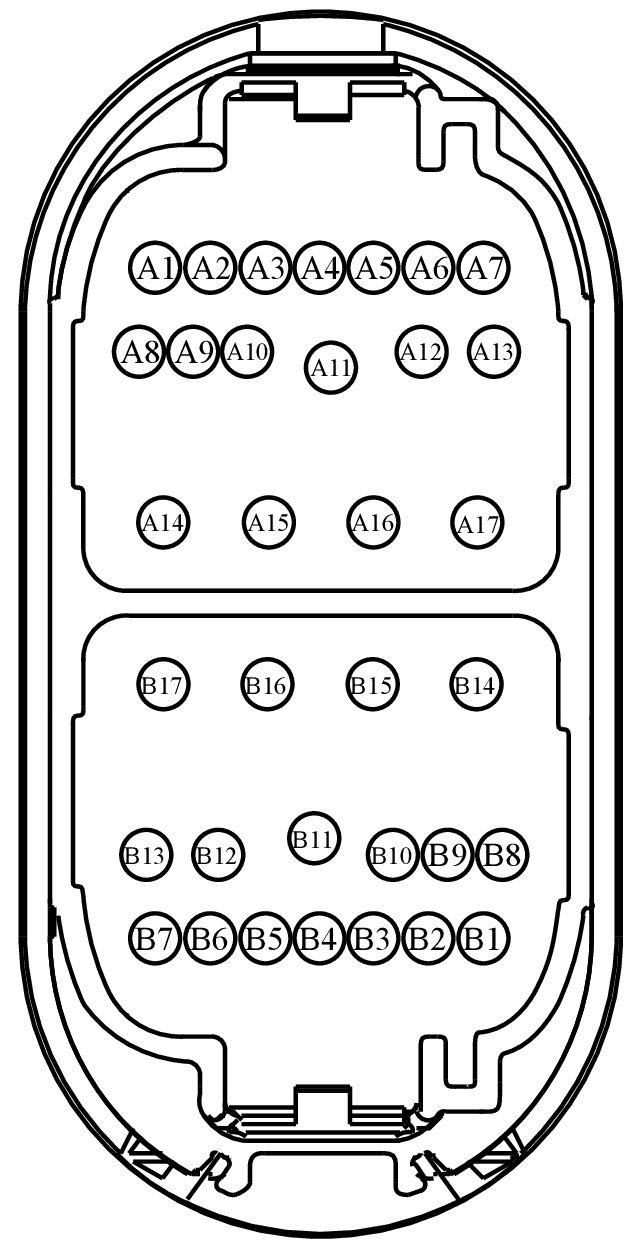

GFDWR129606Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
A1 VR236 (BK) 20 N/A
A1 VR237 (BK) 20 N/A
A2 RR174 (BK) 20 N/A
A2 RR175 (BK) 20 N/A
A3 CPM33 (BK) 20 N/A
A4 CBB79 (BK) 20 N/A
A4 CBB79 (BK) 20 N/A
A4 CBP06 (BK) 22 N/A
A5 VMED3 (BK) 18 N/A
A5 VMED4 (BK) 18 N/A
A6 RMED3 (BK) 18 N/A
A6 RMED4 (BK) 18 N/A
A7 CPL30 (BK) 20 N/A
A8 CPL28 (BK) 20 N/A
A9 CPL29 (BK) 20 N/A
A10 CPM34 (BK) 20 N/A
A11 CBP25 (BK) 14 N/A
A12 CPL51 (BK) 17 N/A
A12 CPL52 (BK) 17 N/A
A13 CBP06 (BK) 20 N/A
A13 CLS22 (BK) 20 N/A
A14 CBP25 (BK) 14 N/A
A14 CBP25 (BK) 14 N/A
A14 SBP07 (BK) 12 N/A
A14 SBP14 (BK) 14 N/A
A15 CPW12 (BK) 14 N/A
A15 CPW13 (BK) 14 N/A
A15 CPW13 (BK) 14 N/A
A16 CPW12 (BK) 14 N/A
A16 CPW12 (BK) 14 N/A
A16 CPW13 (BK) 14 N/A
A17 CPW15 (BK) 14 N/A
B1 CPL26 (BK) 22 N/A
B2 VLN04 (BK) 20 N/A
B2 VLN04 (BK) 22 N/A
B3 CPL87 (BK) 20 N/A
B4 VPK39 (BK) 22 N/A
B4 VPK40 (BK) 22 N/A
B5 VPK01 (BK) 22 N/A
B5 VPK02 (BK) 22 N/A
B6 RPK01 (BK) 22 N/A
B6 RPK02 (BK) 22 N/A
B7 RPK39 (BK) 22 N/A
B8 CPL43 (BK) 20 N/A
B9 CPL42 (BK) 20 N/A
B10 RPM08 (BK) 20 N/A
B11 GD354 (BK) 14 N/A
B11 GD357 (BK) 14 N/A
B11 GD357 (BK) 20 N/A
B12 CPL11 (BK) 17 N/A
B13 CPL12 (BK) 17 N/A
B14 CPW16 (BK) 14 N/A
B14 VPLA4 (BK) 20 N/A
B14 VPLA6 (BK) 20 N/A
B15 CPW14 (BK) 14 without door modules N/A
B15 VDB06 (BK) 22 with door modules N/A
B16 CPW17 (BK) 14 without door modules N/A
B16 VDB07 (BK) 22 with door modules N/A
B17 CPW18 (BK) 14 N/A

FEMALE

Harness

14A005

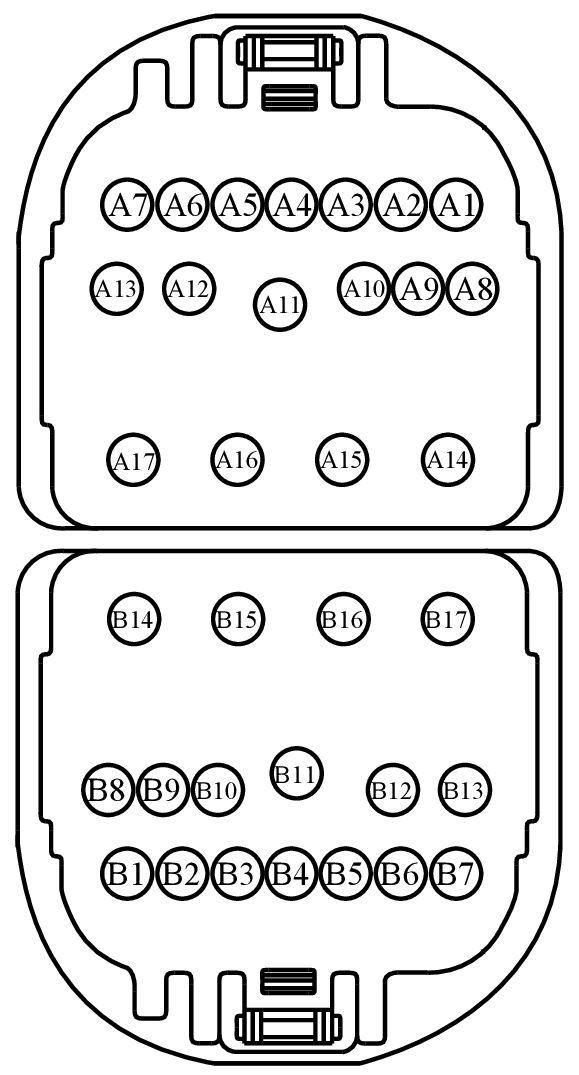

GFDWR129607Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
A1 VR236 (BU-OG) 20 N/A
A2 RR174 (WH-OG) 20 N/A
A3 CPM33 (WH-VT) 22 N/A
A4 CBB79 (VT-WH) 20 N/A
A4 CBP06 (WH-BU) 22 N/A
A5 VMED3 (BU) 18 N/A
A6 RMED3 (GY-BN) 18 N/A
A7 CPL30 (BU-BN) 20 N/A
A8 CPL28 (VT-BN) 22 N/A
A9 CPL29 (YE-GY) 22 N/A
A10 CPM34 (WH-BN) 22 N/A
A11 CBP25 (WH-OG) 14 N/A
A12 CPL51 (BU-GN) 17 N/A
A12 CPL52 (VT-GY) 17 N/A
A13 CBP06 (WH-BU) 20 N/A
A13 CLS22 (GN-BN) 20 N/A
A14 CBP25 (WH-OG) 14 N/A
A14 SBP07 (WH-RD) 12 N/A
A14 SBP14 (BN-RD) 14 N/A
A15 CPW13 (GN-OG) 14 N/A
A16 CPW12 (GN-OG) 14 N/A
A17 CPW15 (YE) 14 N/A
B1 CPL26 (GN-VT) 20 N/A
B2 CBP06 (WH-BU) 22 N/A
B3 CPL87 (BN) 22 N/A
B4 VPK39 (GN-VT) 22 N/A
B5 VPK01 (BN-YE) 22 N/A
B6 RPK01 (WH-GN) 22 N/A
B7 RPK39 (VT-OG) 22 N/A
B8 CPL43 (VT-GY) 20 N/A
B8 CPL43 (VT-GY) 22 N/A
B9 CPL42 (GY-YE) 20 N/A
B10 RPM08 (GN-BU) 22 N/A
B11 GD354 (BK-BU) 12 N/A
B11 GD354 (BK-BU) 14 N/A
B12 CPL11 (GY-BN) 17 N/A
B13 CPL12 (VT-OG) 17 N/A
B14 CPW16 (BU-OG) 14 N/A
B14 VPLA4 (WH-GN) 20 N/A
B15 CPW14 (VT-WH) 14 without door modules N/A
B15 VDB06 (GY-OG) 22 with door modules N/A
B16 CPW17 (BN-GN) 14 without door modules N/A
B16 VDB07 (VT-OG) 22 with door modules N/A
B17 CPW18 (GY-VT) 14

Available Pigtail Kits

Pigtail Kit Part Number WPT-1576

Service Part Number:

KU2Z-14S411-CA

Gauge:

14 16 20

Pin material:

Tin & Tin (greased)

Cavities:

34

Vehicle Uses:

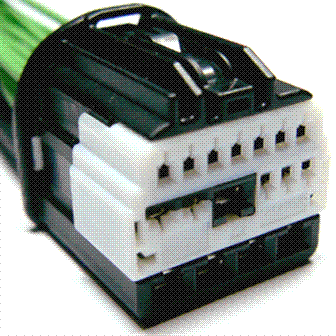

Pigtail Kit Part Number WPT-1517

GFDWR19149Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-PA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

17

Vehicle Uses:
