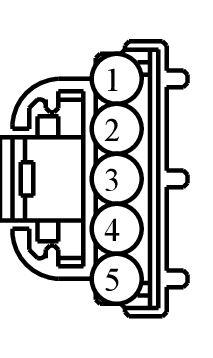

Connector End View (C505) - FRONT DOOR LOCK SWITCH LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C505	FRONT DOOR LOCK SWITCH LH	BK	14630/14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN04 (BK)	20	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
2	CPL42 (BK)	20	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	N/A
3	GD354 (BK)	20	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	N/A
3	RPW03 (BK)	20	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN	door modules	N/A
4	CPL43 (BK)	20	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	N/A
5	CPL87 (BK)	20	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-983

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-SB

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Module - Heads Up Display
• Switch - Overdrive Cancel
• Switch - Power Window - LH - Rear
• Switch - Power Window - Passenger (Front)
