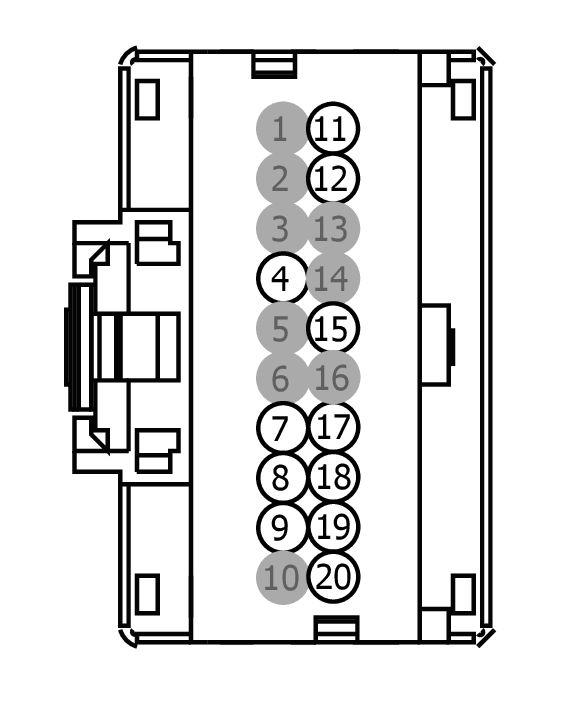

Connector End View (C501B) - DRIVER DOOR MODULE (DDM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C501B	DRIVER DOOR MODULE (DDM)	GY	14631	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CPL28 (BK)	20	SWITCH - LATCH DRIVER OR LEFT FRONT # RESET	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	CPM29 (BK)	22	CTRL MOD. - LEFT MIRROR UP	N/A
8	CPM27 (BK)	22	CTRL MOD. - LEFT MIRROR LEFT	N/A
9	CPM40 (BK)	22	CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV)	N/A
10	*	*	Not Used	N/A
11	CPL29 (BK)	20	SWITCH - LATCH DRIVER OR LEFT FRONT # SET	N/A
12	RPL61 (BK)	20	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RRB06 (BK)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER -	N/A
16	*	*	Not Used	N/A
17	RPM08 (BK)	22	CTRL MOD. - RIGHT MIRROR RETURN	N/A
18	CPM04 (BK)	22	CTRL MOD. - LEFT MIRROR FOLD IN	N/A
19	CRB06 (BK)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER +	N/A
20	CRD13 (BK)	22	CTRL MOD. - HEATER MIRROR LEFT	N/A
