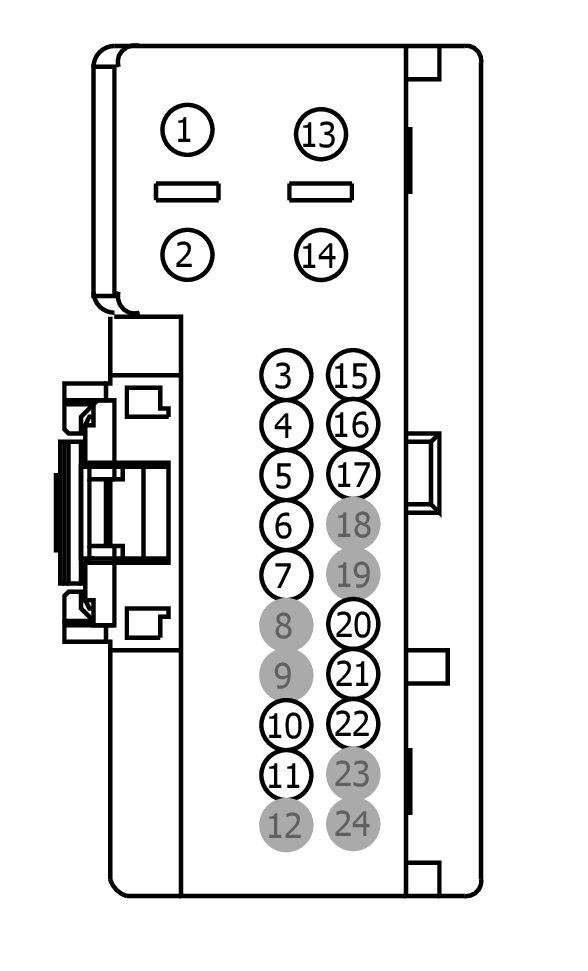

Connector End View (C501A) - DRIVER DOOR MODULE (DDM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C501A	DRIVER DOOR MODULE (DDM)	GY	14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP07 (BK)	12	FUSE - 7 OR CIRCUIT BREAKER	N/A
2	GD354 (BK)	12	GROUND - ROCKER PANEL FRONT LEFT # 2ND POINT	N/A
3	CPL87 (BK)	20	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	N/A
4	CLS22 (BK)	20	CTRL MOD. - TURN LAMP LEFT MIRROR +	N/A
5	VPLA4 (BK)	20	CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE	N/A
6	VDB07 (BK)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
7	VDB06 (BK)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	CPL43 (BK)	20	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	N/A
11	VPW39 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 2 (UP IF LEAD)	N/A
12	*	*	Not Used	N/A
13	CPW35 (BK)	14	CTRL MOD. - WINDOW MOTOR DRIVER # DOWN (IF POSITIVE)	N/A
14	CPW34 (BK)	14	CTRL MOD. - WINDOW MOTOR DRIVER # UP (IF POSITIVE)	N/A
15	VLN04 (BK)	20	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
16	LPW36 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS	N/A
17	RPW03 (BK)	22	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	CPL42 (BK)	20	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	N/A
21	VPW38 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	N/A
22	RPW37 (BK)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1617

Service Part Number:

KU2Z-14S411-ZA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver

Cavities:

Vehicle Uses:
