Connector End View (C495) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C495	INLINE	DK GY	15A41713B578	See Below

Terminal Part Number	Service Part Number	Size

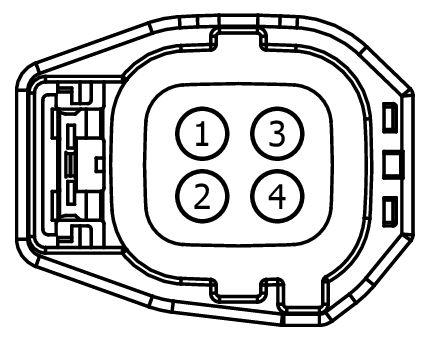

MALE

Harness

15A417

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CAT29 (GN)	16	N/A
2	CAT28 (YE)	16	N/A
3	CAT17 (BN)	16	N/A
	4	RAT08 (WH)	16	N/A

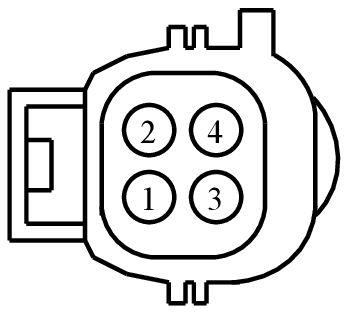

FEMALE

Harness

13B578

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CAT29 (GN)	16	N/A
2	CAT28 (YE)	16	N/A
3	CAT17 (BN)	16	N/A
	4	RAT08 (WH)	16	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1012

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-PA

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Windshield Wiper
• Radio - Amplifier
