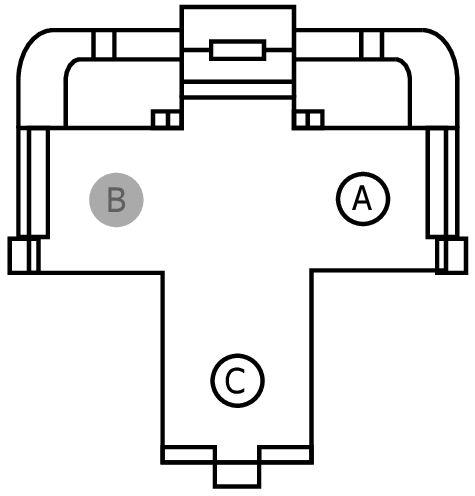

Connector End View (C474) - LUGGAGE COMPARTMENT POWER OUTLET SOCKET
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C474 | LUGGAGE COMPARTMENT POWER OUTLET SOCKET | 14A005 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| A | CBB21 (BU-GY) | 14 | FUSE - 21 OR CIRCUIT BREAKER | N/A | ||||
| B | * | * | Not Used | N/A | ||||
| C | GD352 (BK-BU) | 14 | GROUND - PILLAR D RIGHT # 2ND POINT | N/A | ||||
