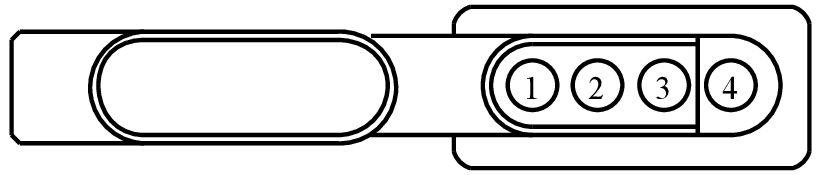

Connector End View (C473) - TRAILER SOCKET

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C473	TRAILER SOCKET	NA	15K868	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAT29 (GN)	14	CTRL MOD. - TRAILER TOW # STOP/TURN LAMP RIGHT	N/A
2	CAT28 (YE)	14	CTRL MOD. - TRAILER TOW # STOP/TURN LAMP LEFT	N/A
3	CAT17 (BN)	14	RELAY - TRAILER TOW PARK LAMPS	N/A
4	RAT08 (WH)	14	CTRL MOD. - TRAILER TOW # RETURN	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-840

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-JA

Gauge:

12

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Trailer Tow - Vehicle Side
