Connector End View (C438) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C438	INLINE	LT GY	17N40014A583	See Below

Terminal Part Number	Service Part Number	Size

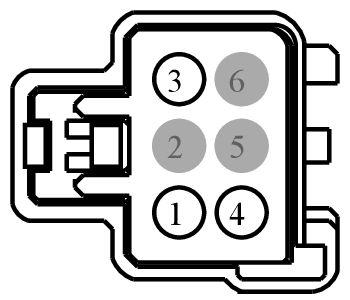

MALE

Harness

17N400

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CPL44 (BK)	20	N/A
2	*	*	N/A
3	CRW02 (BK)	20	N/A
4	CBB13 (BK)	16	N/A
5	*	*	N/A
	6	*	*	N/A

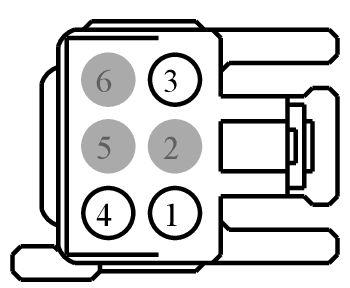

FEMALE

Harness

14A583

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CPL44 (BK)	22	N/A
2	*	*	N/A
3	CRW02 (BK)	20	N/A
4	CBB13 (BK)	16	N/A
5	*	*	N/A
	6	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1299

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-NBB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Inverter - DC to AC
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Courtesy - Footwell
• Lamp - License
• Lamp - Park/Turn/Stop
• Lamp - Top Finish Panel
• Mating Connector WPT-962
• Motor - Adjustable Pedal
• Switch - Gear Shift Select/Neutral Safety
• Switch - Multifunction

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
