Connector End View (C432) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C432	INLINE	15K86814A005			See Below

Terminal Part Number	Service Part Number	Size

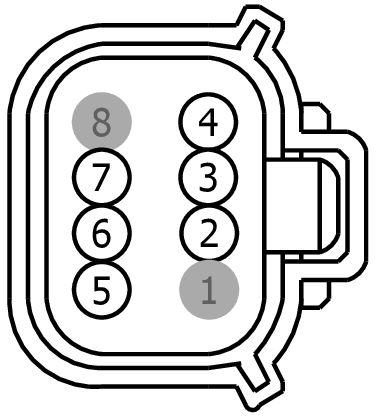

MALE

Harness

15K868

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	VDB07 (VT-OG)	22	N/A
3	VDB06 (GY-OG)	22	N/A
4	CBB61 (BU-GY)	18	N/A
5	GD351 (BK-GN)	18	N/A
6	VDB06 (GY-OG)	22	N/A
7	VDB07 (VT-OG)	22	N/A
	8	*	*	N/A

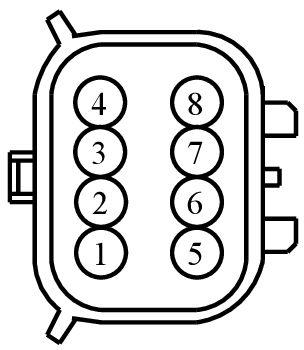

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	VDB07 (VT-OG)	22	N/A
3	VDB06 (GY-OG)	22	N/A
4	CBB61 (BU-GY)	16	N/A
5	GD351 (BK-GN)	16	N/A
5	GD351 (BK-GN)	17	N/A
6	VDB06 (GY-OG)	22	N/A
7	VDB07 (VT-OG)	22	N/A
	8	*	*	N/A

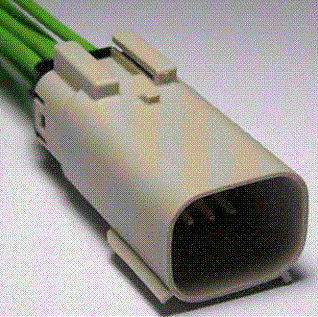

Available Pigtail Kits

Pigtail Kit Part Number WPT-1614

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-CB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• *Lamp - Park/Turn/Stop
• Mirror - Sideview / Heated

Available Pigtail Kits

Pigtail Kit Part Number WPT-1614

Service Part Number:

FU2Z-14S411-BB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - Reverse
• Mirror - Sideview / Heated
