Connector End View (C431) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C431	INLINE	15K86814A005			See Below

Terminal Part Number	Service Part Number	Size

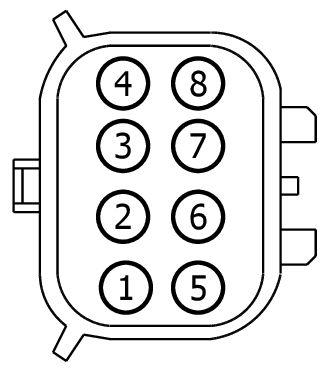

MALE

Harness

15K868

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	RMP07 (GN-WH)	22	N/A
2	VMP14 (WH-OG)	22	N/A
3	VMP15 (YE-GN)	22	N/A
4	VMP16 (YE-GY)	22	N/A
5	VMP17 (YE-OG)	22	N/A
6	VMP30 (BN)	22	N/A
7	VMP29 (GN-OG)	22	N/A
	8	LMP07 (BU-WH)	22	N/A

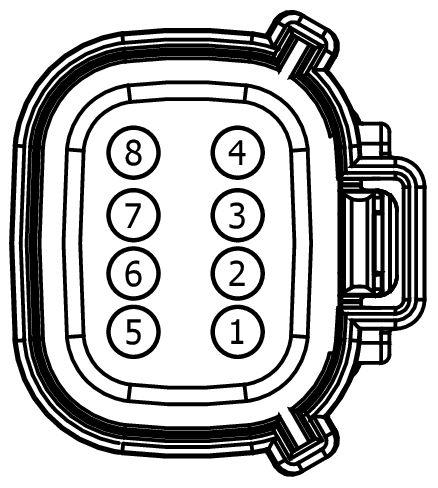

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	RMP07 (GN-WH)	22	N/A
2	VMP14 (WH-OG)	22	N/A
3	VMP15 (YE-GN)	22	N/A
4	VMP16 (YE-GY)	22	N/A
5	VMP17 (YE-OG)	22	N/A
6	VMP30 (BN)	22	N/A
7	VMP29 (GN-OG)	22	N/A
	8	LMP07 (BU-WH)	22	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1605

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-DC

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Flashing LED
• Lamp - Park/Turn/Stop
• Mirror - Sideview
• Mirror - Sideview / Heated
• Module - Anti-Lock Brake System

Pigtail Kit Part Number WPT-1524

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ALB

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Actuator - Door Lock - LH - Sliding Door
• Actuator - Door Lock - RH - Sliding Door
• Connector - Inline
• Inflator - Safety Belt
