Connector End View (C422) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C422	INLINE	BK	14A00513A409	See Below

Terminal Part Number	Service Part Number	Size

MALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLS17 (YE-GY)	20	N/A
2	*	*	N/A
	3	GD348 (BK-YE)	20	N/A

FEMALE

Harness

13A409

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLS17 (YE-GY)	20	N/A
2	*	*	N/A
	3	GD352 (BK-BU)	20	N/A

Available Pigtail Kits

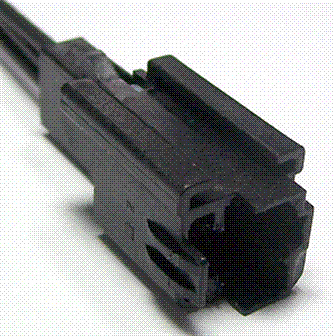

Pigtail Kit Part Number WPT-1103

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EXAB

Gauge:

18

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Lamp - PRNDL Indicator
• Module - Radio Power Antenna
• Switch - Overdrive Cancel

Pigtail Kit Part Number WPT-911

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-LA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Fuse Panel Junction Block
• Lamp - Ambient Lighting
• Lamp - Front Park
• Lamp - Map
• Lamp - Park/Turn
• Lamp - PRNDL Indicator
• Lamp - Roof Marker
• Module - Driver Door
• Sensor - Speed
• Switch - Ambient Lighting Dimmer
