Connector End View (C410) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C410	INLINE	LT GY	17N400/13A44413412/15B484	See Below

Terminal Part Number	Service Part Number	Size

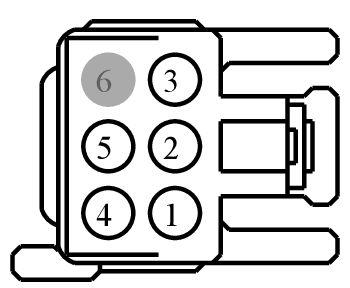

MALE

Harness

17N400/13A444

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VDN14 (BK)	22	N/A
2	VMP19 (BK)	22	N/A
3	RMP19 (BK)	22	N/A
4	DMP19 (NONE)	22	N/A
5	CBB61 (BK)	20	N/A
	6	*	*	N/A

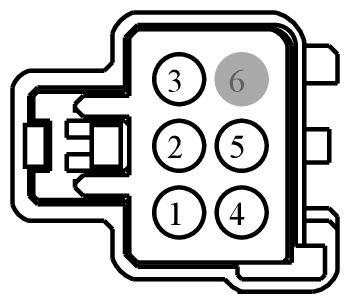

FEMALE

Harness

13412/15B484

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VDN14 (YE-VT)	22	N/A
2	VMP19 (WH-GN)	22	N/A
3	RMP19 (BU-GY)	22	N/A
4	DMP19 (BARE)	22	N/A
5	CBB61 (BU-GY)	20	N/A
	6	*	*	N/A

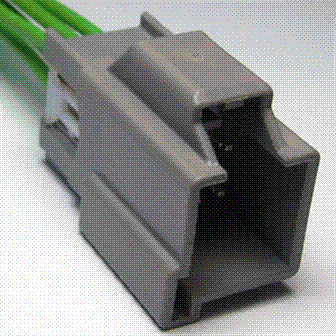

Available Pigtail Kits

Pigtail Kit Part Number WPT-1299

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-NBB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Inverter - DC to AC
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Courtesy - Footwell
• Lamp - License
• Lamp - Park/Turn/Stop
• Lamp - Top Finish Panel
• Mating Connector WPT-962
• Motor - Adjustable Pedal
• Switch - Gear Shift Select/Neutral Safety
• Switch - Multifunction

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
