Connector End View (C408) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C408	INLINE	GN	13A44415B484	See Below

Terminal Part Number	Service Part Number	Size

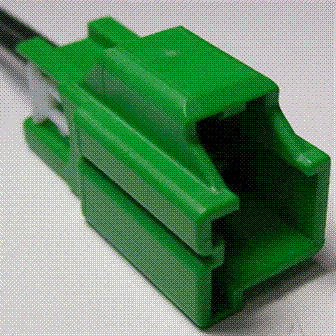

MALE

Harness

13A444

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLS05 (BK)	20	N/A
	2	GD349 (BK)	20	N/A

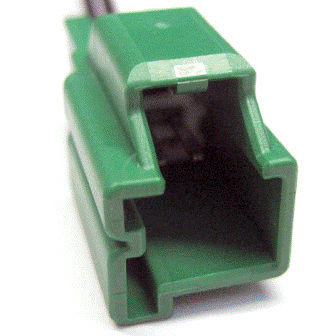

FEMALE

Harness

15B484

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CLS05 (BU-GY)	20	N/A
	2	GD349 (BK-GY)	20	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1238

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-VB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Element - Heated Seat
• Indicator - Passenger Airbag Deactivation (PADI)

Pigtail Kit Part Number WPT-917

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-VA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Element - Heated Seat

Pigtail Kit Part Number WPT-1163

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JYB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Headlamp Switch
• Sensor - EATC In Car Temperature
• Solenoid - Brake Shift Park Interlock
• Switch - Brake Pressure
• Switch - Headlamp
• Switch - Neutral Tow
• Switch - Stop Lamp
