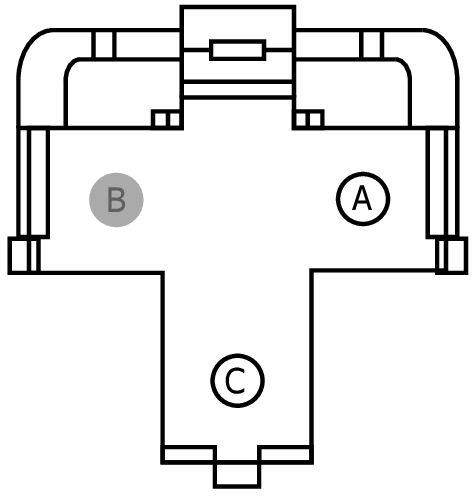

Connector End View (C380) - FRONT POWER OUTLET
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C380 | FRONT POWER OUTLET | 14B079 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| A | CBB11 (BN) | 14 | FUSE - 11 OR CIRCUIT BREAKER | N/A | ||||
| B | * | * | Not Used | N/A | ||||
| C | GD238 (BK) | 14 | GROUND - COWL SIDE/PILLAR A RIGHT | N/A | ||||
