Connector End View (C316) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C316	INLINE	BK	14A00514B079	See Below

Terminal Part Number	Service Part Number	Size

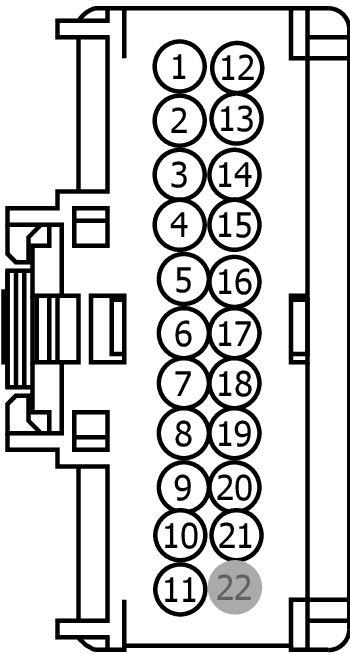

MALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VHA30 (BN-YE)	22	N/A
2	RH119 (YE-VT)	22	N/A
3	CH233 (VT-BN)	22	N/A
4	CH232 (WH-BN)	22	N/A
5	CH234 (YE-GN)	22	N/A
6	CH235 (BU)	22	N/A
7	CH236 (WH)	22	N/A
8	CH202 (BU-GN)	22	N/A
9	CH201 (BN-BU)	22	N/A
10	CH203 (GN-BN)	22	N/A
11	CH204 (GY-OG)	22	N/A
12	CH205 (BN-WH)	22	N/A
13	VH110 (GN-VT)	20	N/A
14	SBP12 (GN-RD)	20	N/A
15	CHP03 (GN-BN)	22	N/A
16	VLN04 (VT-GY)	22	N/A
17	VHA38 (VT-GY)	22	N/A
18	RHA29 (WH-VT)	20	N/A
19	GD357 (BK)	18	N/A
20	CBP02 (GN)	22	N/A
21	VHA25 (WH-BN)	22	N/A
	22	*	*	N/A

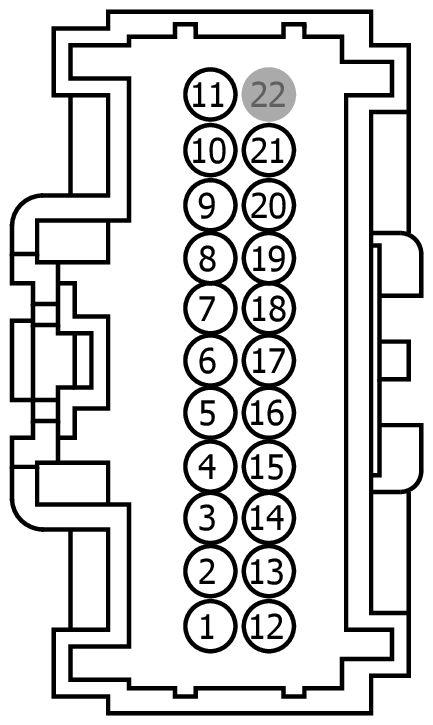

FEMALE

Harness

14B079

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VHA30 (BN-YE)	22	N/A
2	RH119 (YE-VT)	22	N/A
3	CH233 (VT-BN)	22	N/A
4	CH232 (WH-BN)	22	N/A
5	CH234 (YE-GN)	22	N/A
6	CH235 (BU)	22	N/A
7	CH236 (WH)	22	N/A
8	CH202 (BU-GN)	22	N/A
9	CH201 (BN-BU)	22	N/A
10	CH203 (GN-BN)	22	N/A
11	CH204 (GY-OG)	22	N/A
12	CH205 (BN-WH)	22	N/A
13	VH110 (GN-VT)	20	N/A
14	SBP12 (GN-RD)	20	N/A
15	CHP03 (GN-BN)	22	N/A
16	VLN04 (VT-GY)	22	N/A
17	VHA38 (VT-GY)	22	N/A
18	RHA29 (WH-VT)	20	N/A
19	GD357 (BK)	20	N/A
20	CBP02 (GN)	22	N/A
21	VHA25 (WH-BN)	22	N/A
	22	*	*	N/A

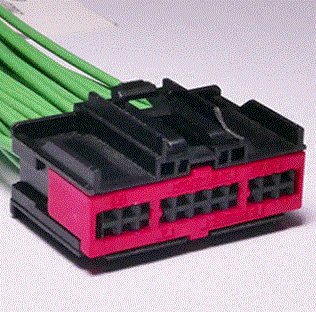

Available Pigtail Kits

Pigtail Kit Part Number WPT-1616

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-MA

Gauge:

20

Pin material:

Silver

Cavities:

22

Vehicle Uses:

• Connector - Inline
• Mirror - Sideview With Memory
