Connector End View (C315) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C315	INLINE	1440114B079			Not Available

Terminal Part Number	Service Part Number	Size

MALE

Harness

14401

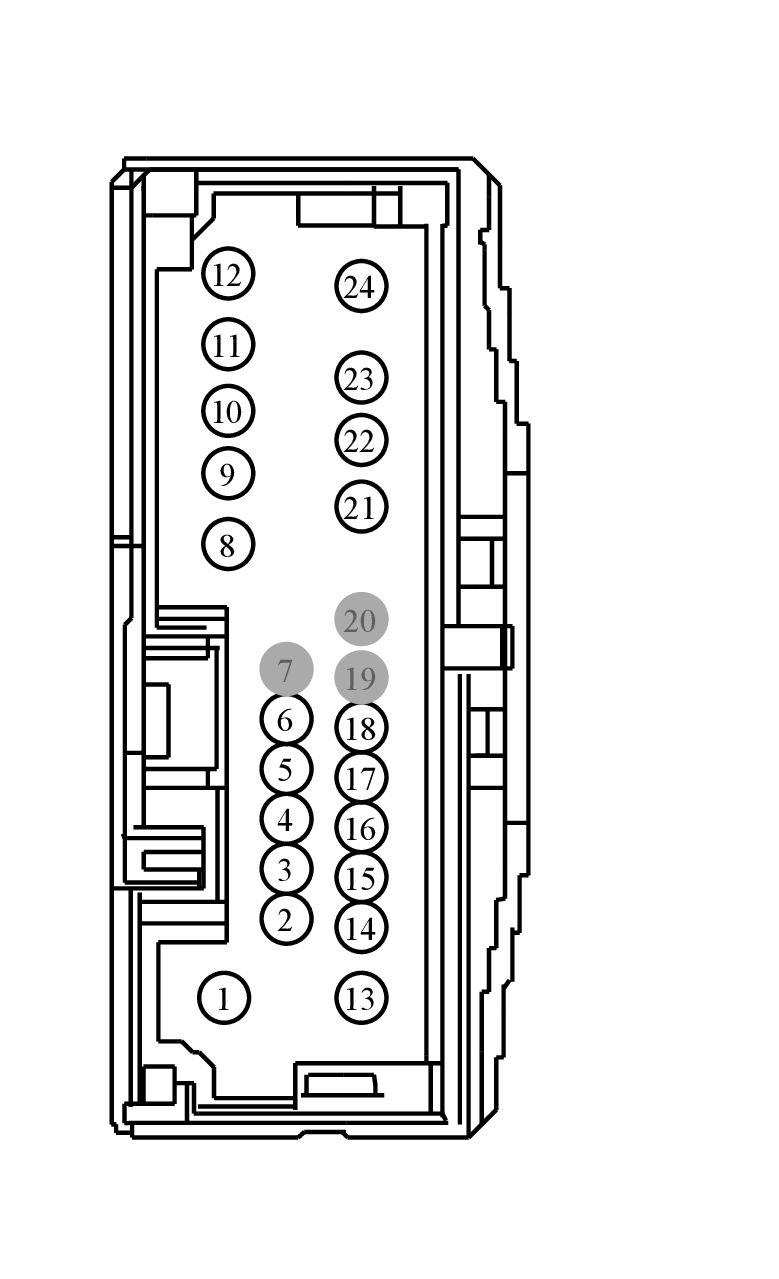

GFDWR129551

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB10 (YE-OG)	14	N/A
2	RPK05 (YE-OG)	22	N/A
3	VPK05 (BN-GN)	22	N/A
4	CAX13 (YE-OG)	22	N/A
5	CLN17 (BN)	22	N/A
6	RAX13 (BU-GY)	22	N/A
7	*	*	N/A
8	LME89 (YE-BU)	22	N/A
8	LME89 (YE-BU)	26	N/A
9	SBB43 (BU-RD)	18	N/A
10	VLN04 (VT-GY)	22	N/A
11	CBP06 (WH-BU)	20	N/A
11	HYA02 (OG-WH)	18	N/A
12	CBP06 (WH-BU)	20	N/A
13	GD233 (BK)	14	N/A
13	GD238 (BK-WH)	14	N/A
14	VLN04 (VT-GY)	22	N/A
15	RYA03 (BU-BN)	22	N/A
16	CAX12 (YE-VT)	18	N/A
16	LYA03 (YE-VT)	22	N/A
17	GD214 (BK-BU)	22	N/A
18	LYA03 (YE-VT)	22	N/A
19	*	*	N/A
20	*	*	N/A
21	HYA01 (OG-GN)	18	N/A
22	HYA02 (OG-WH)	18	N/A
23	RME89 (WH-BU)	22	N/A
23	RME89 (WH-BU)	26	N/A
	24	CBB11 (BN)	14	N/A

FEMALE

Harness

14B079

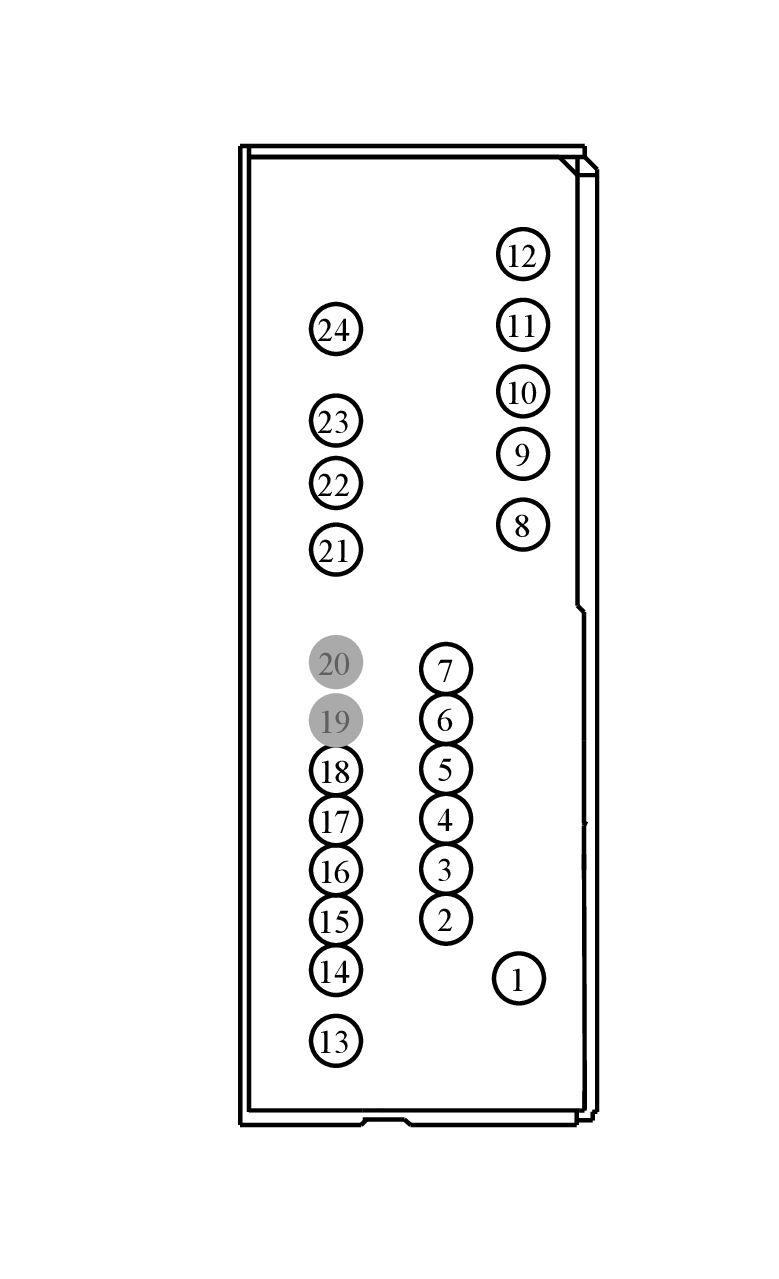

GFDWR129552

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB10 (YE-OG)	14	N/A
2	RPK05 (YE-OG)	22	N/A
3	VPK05 (BN-GN)	22	N/A
4	CAX13 (YE-OG)	22	N/A
5	CLN17 (BN)	22	N/A
6	RAX13 (BU-GY)	22	N/A
7	GD214 (BK-BU)	22	N/A
8	LME89 (YE-BU)	22	N/A
9	SBB43 (BU-RD)	18	N/A
10	VLN04 (VT-GY)	22	N/A
11	CBP06 (WH-BU)	20	N/A
12	CBP06 (WH-BU)	20	N/A
13	GD238 (BK)	14	N/A
14	VLN04 (VT-GY)	22	N/A
15	RYA03 (BU-BN)	22	N/A
16	LYA03 (YE-VT)	22	N/A
17	GD214 (BK-BU)	22	N/A
18	CAX12 (YE-VT)	18	N/A
19	*	*	N/A
20	*	*	N/A
21	HYA01 (OG-GN)	18	N/A
22	HYA02 (OG-WH)	18	N/A
23	RME89 (WH-BU)	22	N/A
	24	CBB11 (BN)	14	N/A
