Connector End View (C312) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C312	INLINE	1440614A005			See Below

Terminal Part Number	Service Part Number	Size

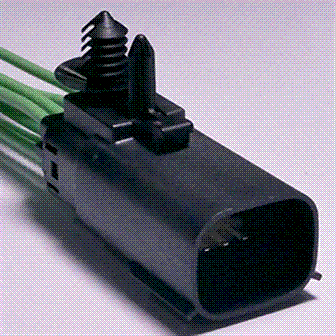

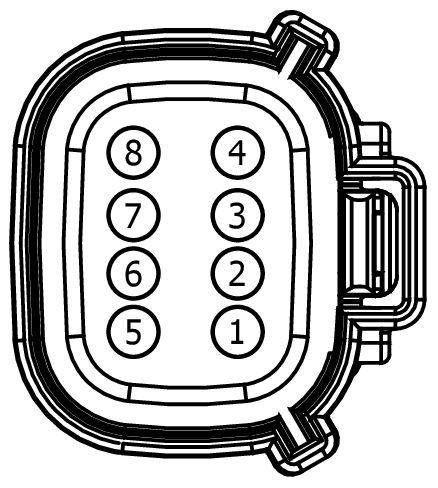

MALE

Harness

14406

Courtesy of FORD MOTOR COMPANY

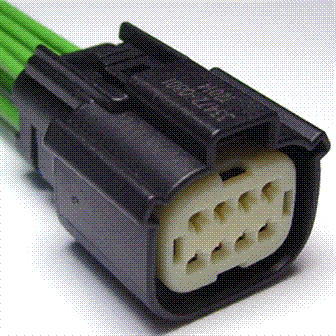

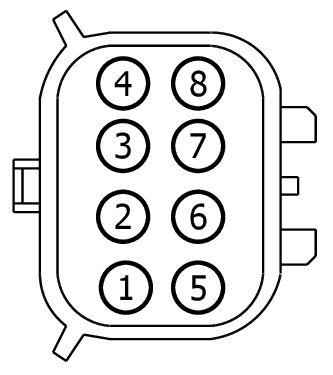

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB68 (GY-VT)	18	N/A
2	VE922 (VT-GN)	20	N/A
3	GD348 (BK-YE)	17	N/A
3	LE230 (BN-BU)	20	N/A
4	GD348 (BK-YE)	16	N/A
4	VE761 (BN-BU)	20	N/A
5	RMC32 (GN-BU)	22	N/A
6	CE420 (GY-VT)	18	N/A
7	CE352 (YE-GY)	16	N/A
7	RE407 (YE-VT)	20	N/A
	8	CE114 (GN-BU)	18	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB68 (GY-VT)	18	N/A
2	VE922 (VT-GN)	20	N/A
3	GD348 (BK-YE)	17	N/A
3	LE230 (BN-BU)	20	N/A
4	GD348 (BK-YE)	16	N/A
4	VE761 (BN-BU)	20	N/A
5	RMC32 (GN-BU)	22	N/A
6	CE420 (GY-BU)	18	N/A
7	CE352 (YE-GY)	16	N/A
7	RE407 (YE-VT)	20	N/A
	8	CE114 (GN-BU)	18	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1605

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-DC

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Flashing LED
• Lamp - Park/Turn/Stop
• Mirror - Sideview
• Mirror - Sideview / Heated
• Module - Anti-Lock Brake System

Pigtail Kit Part Number WPT-1524

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ALB

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Actuator - Door Lock - LH - Sliding Door
• Actuator - Door Lock - RH - Sliding Door
• Connector - Inline
• Inflator - Safety Belt
